Specifications

Depth (mm)	274
Height (mm)	189
Maximum Cable Cross Section (mm²)	1 x 2.5
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	6
Width (mm)	170
Utilisation Category	DC-13
Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-25
Termination	Screw Terminals M20 x 1.5
Switching Principle	Slow Action
No. of Normally-open Contacts	2
No. of Normally-closed Contacts	2
Minimum Mechanical Life	1000000 Operations
Maximum Ambient Temperature (°C)	70
Protective Shield Material	Aluminium
Pedal Material	Glass-fibre, Reinforced Thermoplastic
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	1
Maximum Fuse Rating	6 A gG D-fuse
Switching Element	NO Contact, NC Contact
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC

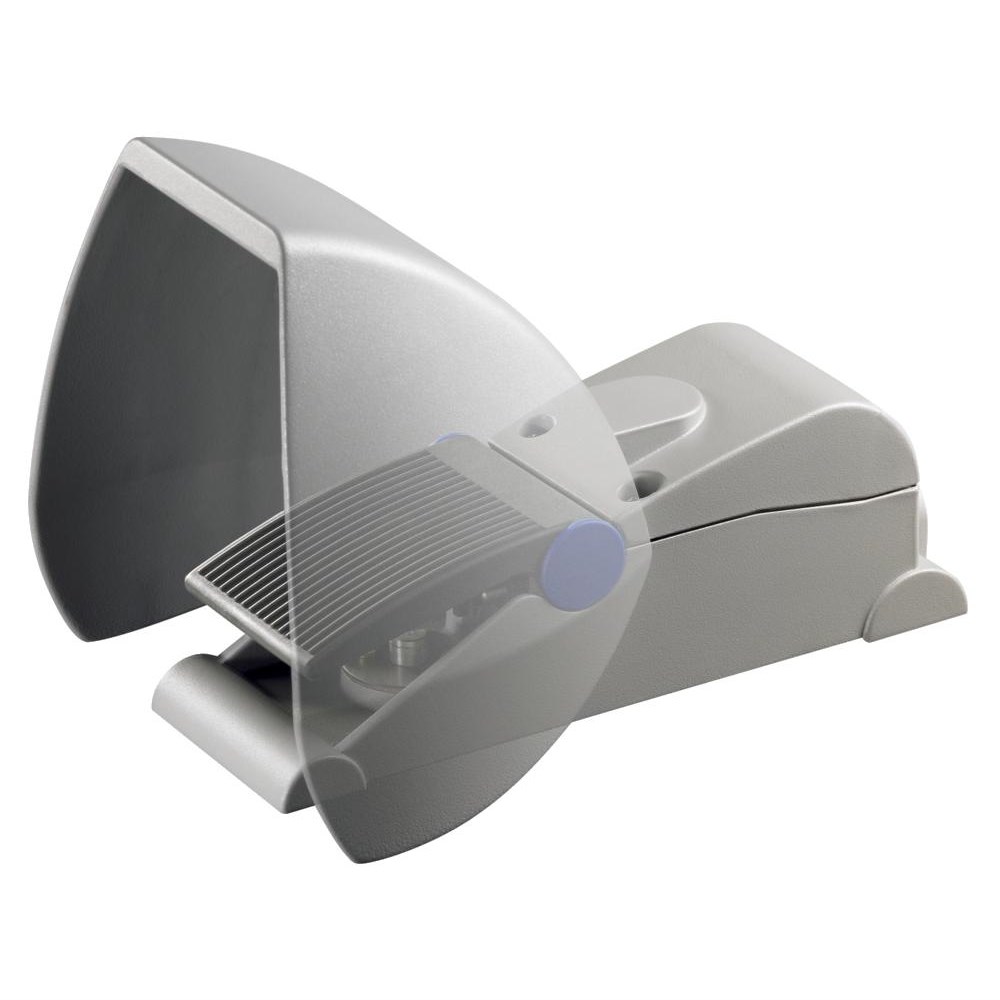

Product Type	Foot Switch
Brand	SCHMERSAL
Cable Cross Section	(1) 2.5 sq-mm
Contact Configuration	1NO+1NC
Degree of Protection	IP65
Depth	274 mm
Enclosure Coating Material	Powder-coated
Fuse Rating	6 A gG D-Fuse
Height	189 mm
Housing Colour	RAL 9006 (White aluminium)
Housing Material	Aluminium
Mechanical Life	1000000 Operations
Rated Current	4 A, 1 A
Rated Voltage	230 VAC, 24 VDC
Standards and Approvals	ENIEC 60947-5-1
Switching Type	Slow Action
Width	170 mm
