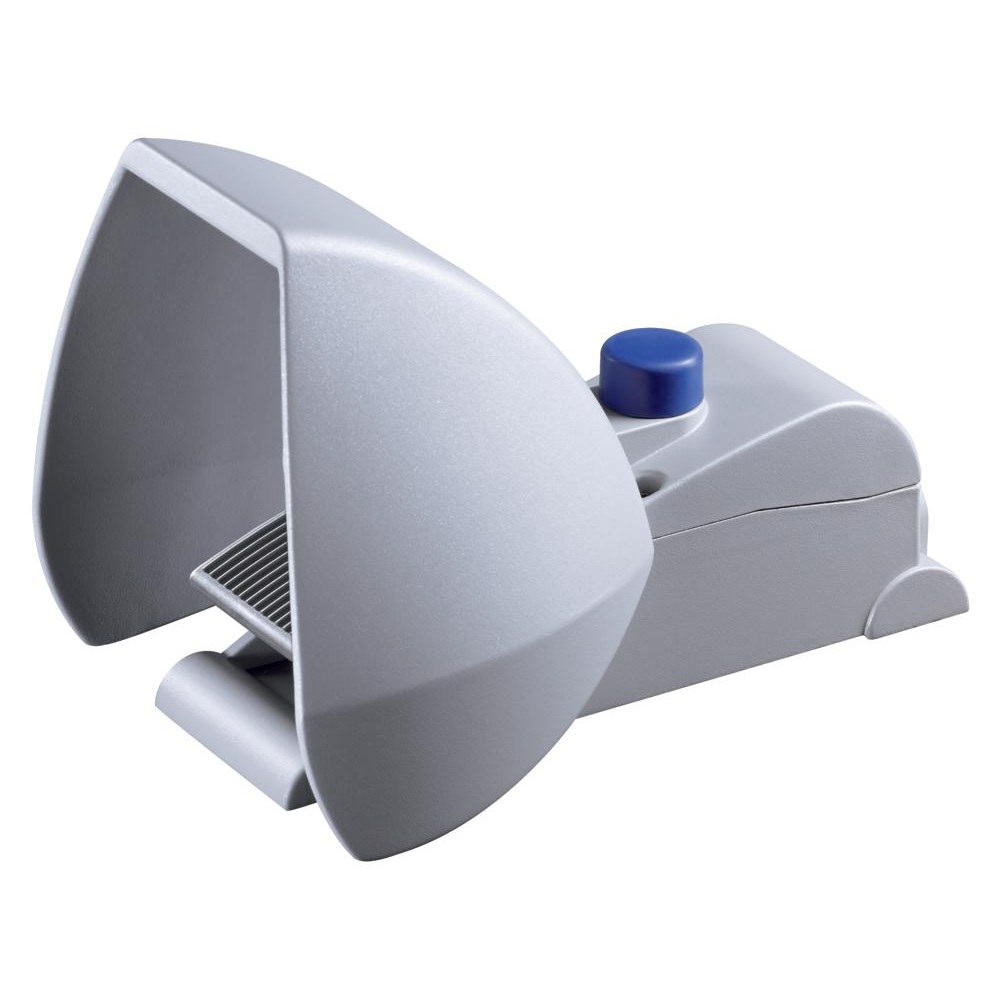

Schmersal 151192630 Foot Switch 1NO-1NC 230VAC 24VDC 4A 1A

Product Code: 151192630

  • Rated for 230 VAC & 24 VDC applications
  • Durable aluminium housing, IP65 protection
  • Complies with BG-GS-ET-15 & ENISO standards
  • Features 1NO+1NC slow action contacts
  • Long mechanical life of 1 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 189
Maximum Cable Cross Section (mm²) 2.5
Pollution Degree 3
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 6
Width (mm) 170
Utilisation Category DC-13
Depth (mm) 274
Thermal Test Current (A) 10
Minimum Ambient Temperature (°C) -25
Termination Screw Terminals M20 x 1.5
Standards EN ISO 13849-1 / EN IEC 60947-5-1 / BG-GS-ET-15
Switching Principle Slow Action
Switching Frequency 3600/h
EAN 4030660000000
No. of Normally-open Contacts 2
No. of Normally-closed Contacts 2
Rated Short-circuit Current (A) 1000
Maximum Relative Humidity 95% (Non-condensing)
Minimum Relative Humidity 30%
Minimum Mechanical Life 1000000 Operations
Maximum Fuse Rating 6 A gG D-fuse
Switching Element NO Contact, NC Contact
Resistance to Shock (g/ms) 30g / 11ms
Rated Operational Voltage AC-15 (V) 230V AC
Rated Operational Voltage DC-13 (V) 24V DC
Resistance to Vibrations 10 ... 150Hz (0.35mm / 5g)
Maximum Storage Temperature (°C) 85
Minimum Storage Temperature (°C) -25
Protective Shield Material Aluminium
Pedal Material Glass-fibre, Reinforced Thermoplastic
Rated Operational Current AC-15 (A) 4
Rated Operational Current DC-13 (A) 1
Maximum Ambient Temperature (°C) 60
Product Type Foot Switch
Brand SCHMERSAL
Cable Cross Section 2.5 sq-mm
Colour White Aluminium
Contact Configuration 1NO+1NC
Degree of Protection IP65
Depth 274 mm
Enclosure Coating Material Powder-coated
Fuse Rating 6 A gG D-Fuse
Height 189 mm
Housing Material Aluminium
Mechanical Life 1000000 Operations
Overvoltage Category 3
Rated Current 4 A, 1 A
Rated Voltage 230 VAC, 24 VDC
Standards and Approvals BG-GS-ET-15, ENIEC 60947-5-1, ENISO 13849-1
Switching Type Slow Action
Width 170 mm
