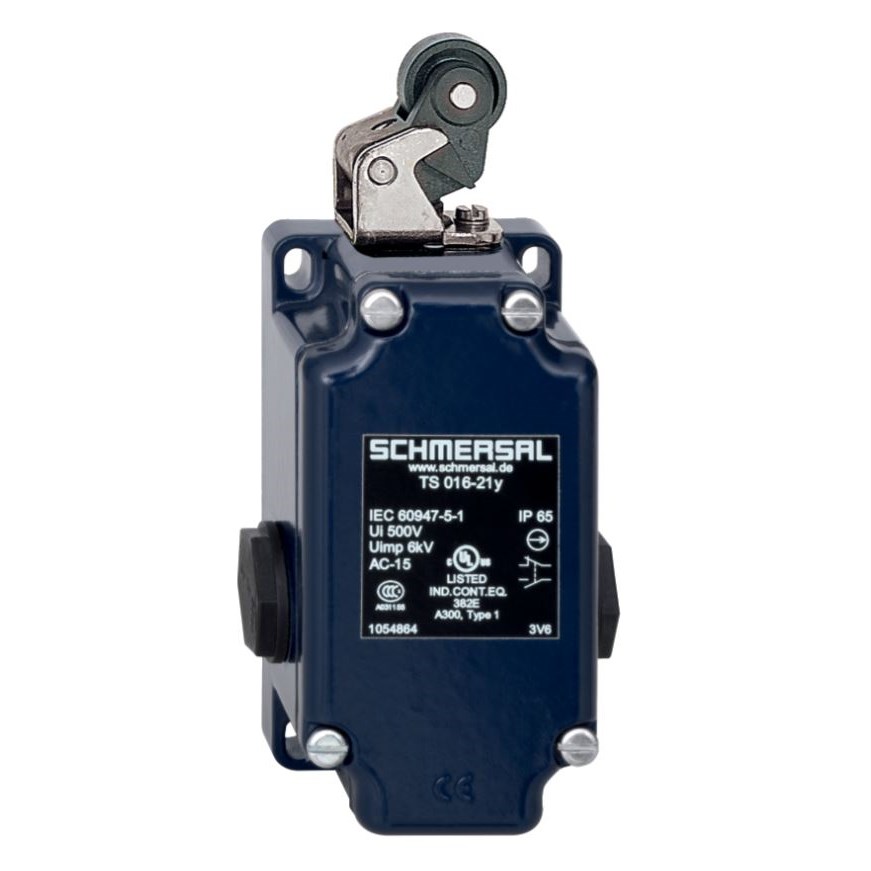

Schmersal 131148062 Position Switch 1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131148062

  • Rated for 400 VAC, 4 A
  • Durable die-cast light alloy housing
  • IP65 protection against dust and water
  • Certified: CCC, cULus, ENIEC 60947-5-1
  • Long mechanical life: 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Speed 0.5 m/s
Contact Configuration 1NC
Contact Material Silver
Degree of Protection IP65
Housing Material Die Cast Light Alloy, Painted
Mechanical Life 5000000 Operations
Rated Current 4 A
Rated Voltage 400 VAC
Standards and Approvals CCC, cULus, EC000030, ENIEC 60947-5-1
Switching Type Slow Action
Weight 399 g

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
