Specifications

Ambient Temperature Range (°C)	-40 °C to + 200 °C
Rated Insulation Voltage (V)	400
Rated Impulse Withstand Voltage (kV)	6
Weight (kg)	1.76
Enclosure Material	Grey Cast Iron, Galvanised
Maximum Switching Current (A)	4
Maximum Actuating Speed (m/s)	3
Maximum Switching Voltage AC (V)	400
Thermal Test Current (A)	16
Sensor Length (mm)	63
Switching Principle	Slow Action
Sensor Width (mm)	106
Sensor Height (mm)	192
Minimum Mechanical Life	10,000,000 Operations
Minimum Actuating Speed (mm/min)	1
Switching Element	NO Contact, NC Contact
Roller Material	Brass
Contact Opening (mm)	2 x 2.5

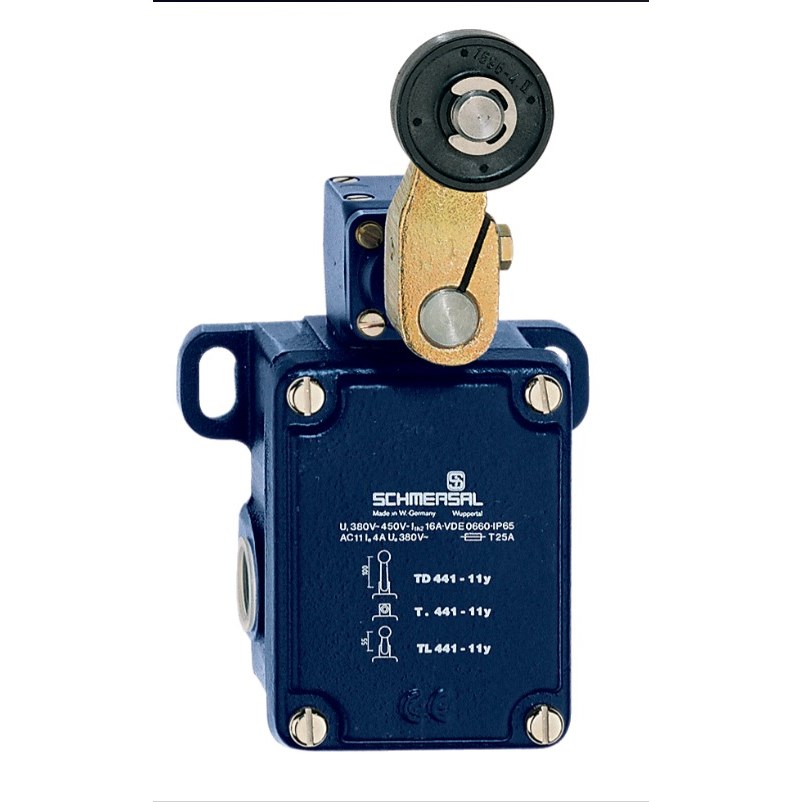

Product Type	Medium-Duty Position Switch
Brand	SCHMERSAL
Actuating Speed	1 mm/min
Actuator Type	Roller Lever
Cable Cross Section	13 AWG
Contact Material	AgSn0
Contact Opening	(2) 6 mm
Degree of Protection	IP65
Housing Material	Grey Cast Iron, Galvanised
Mechanical Life	10000000 Operations
Number of Auxiliary Contacts	1
Rated Current	16 A
Standards and Approvals	EN IEC 60947-5-1
Switching Type	Mechanical
Terminal Type	M20 x 1.5 Screw
