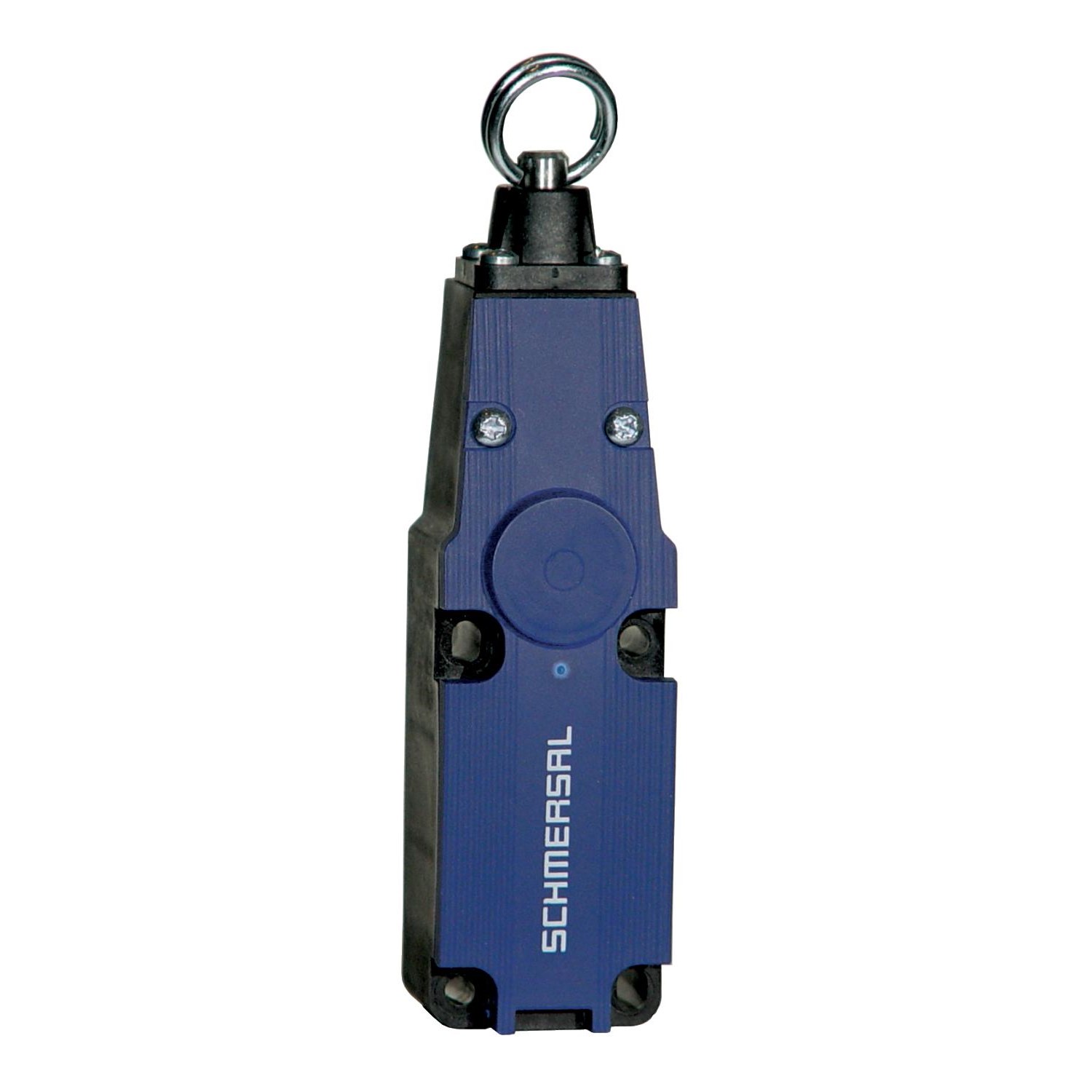

Schmersal 101192481 Pull-Wire Switch 1NO

Product Code: 101192481

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP67 rating
  • Long mechanical life of 1,000,000 cycles
  • Operates in temperatures from -25 to 70°C
  • Complies with CCC and EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Product Type Pull-Wire Switch
Brand SCHMERSAL
Series TQ 700
Action Slow Action
Contact Configuration 1NO
Contact Material Silver
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000 Cycles
Operational Temperature -25 to 70 deg C
Rated Current 4 mA
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Standards and Approvals CCC, EC000030, EN IEC 60947-5-1
Weight 205 g

Description

Explore the Schmersal TQ 700 series pull-wire switch, designed for reliable position sensing in industrial environments. This robust switch features a durable thermoplastic enclosure and is equipped with dual NO contact switching elements for precise operation. It offers secure screw connection terminals and supports a wide range of applications with an AC-15 utilization category of 4 A at 230 VAC and a DC-13 category of 4 A at 24 VDC. Engineered to withstand extreme temperatures from -40°C to +80°C, it also boasts an IP54 rating for protection against dust and splashing water. The unit includes one M20 x 1.5 cable entry, ensuring easy installation for engineers seeking efficient safety solutions.
