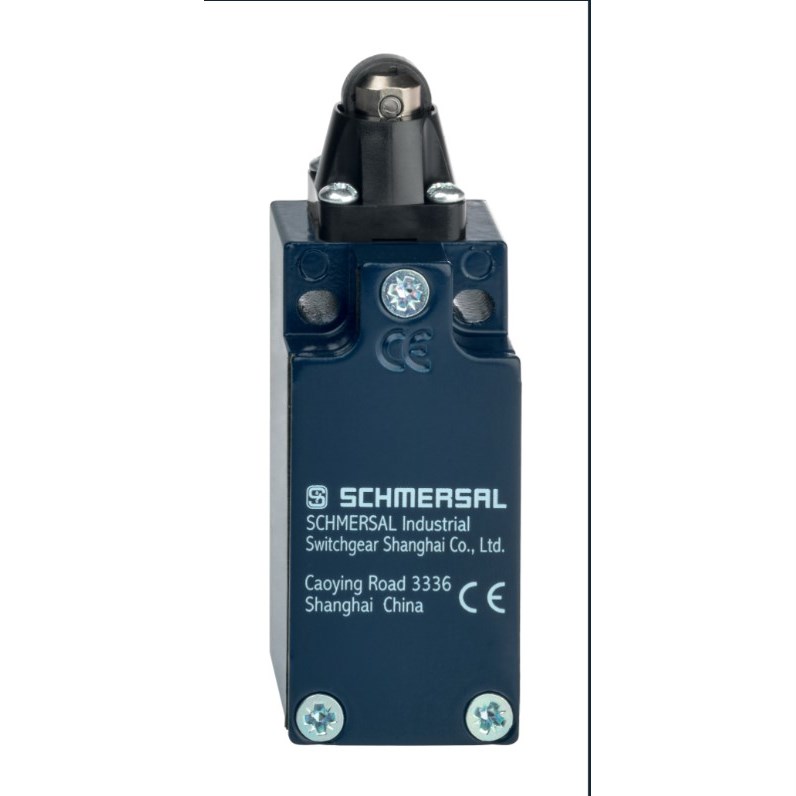

SCHMERSAL TR 236-11Z-1637 POSITION SWITCH 101102126

Product Code: 101102126

Technical Specifications

Maximum Actuating Speed (m/s) 1
Maximum Switching Voltage DC (V) 24
Sensor Height (mm) 84
Sensor Length (mm) 30
Sensor Width (mm) 30
Switching Frequency 5000 /h
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 10
Brand SCHMERSAL
Actuator Type Roller Plunger
Ambient Temperature Range (°C) -30 °C to + 80 °C
Contact Material Gold-plated Silver (AgNi 15 + Au 0,3µm)
Contacts 1 NO Contact 1 NC Contact
Degree of Protection IP65, IP67
Enclosure Material Plastic, Glass-fibre-reinforced
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 240
Minimum Mechanical Life 20,000,000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Tightening Torque (Nm) 1.2
Weight (kg) 0.059
