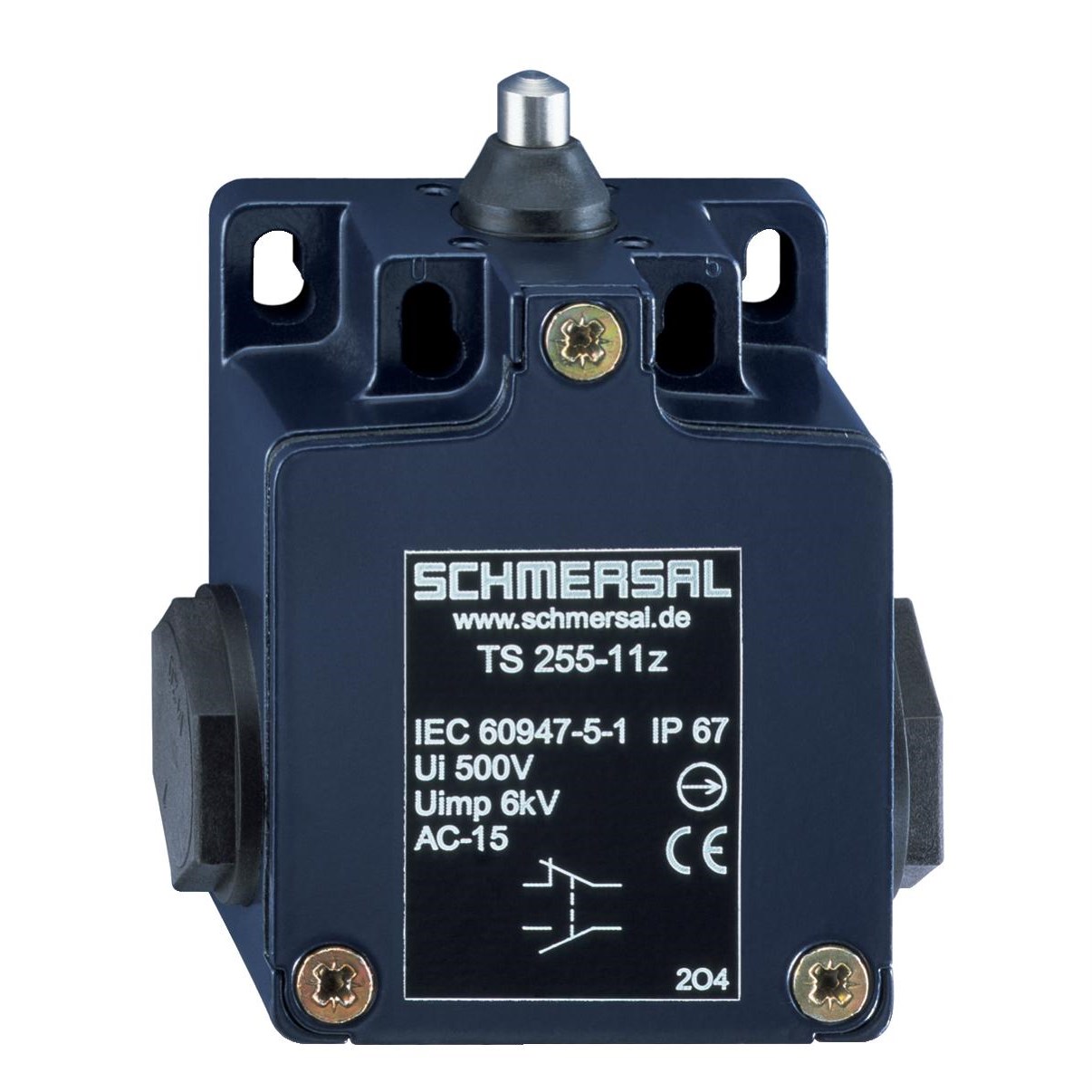

Schmersal 101162752 Position Switch with Safety Function Plunger 1NO-1NC Metal Die Cast Zinc Silver Contact

Product Code: 101162752

  • Rated for 240 VAC and 4 A
  • Durable die-cast zinc housing
  • High protection: IP65, IP67
  • Meets multiple global standards
  • Long life: 20 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series 255
Actuating Speed 60 mm/min
Actuator Type Plunger
Cable Cross Section 0.75 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Metal, Die Cast Zinc
Mechanical Life 20000000 Operations
Number of Auxiliary Contacts 1
Rated Current 4 A
Rated Voltage 240 VAC
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Switching Type Slow Action
Weight 50 g

Description

Discover the Schmersal Series 255 Position Switch, a robust machine safety solution designed with a durable metal enclosure. This switch features a plunger actuating element and offers both NO and NC contact switching elements. It is rated for a thermal test current of 10 A and meets utilization categories AC-15 with a rating of 240 VAC at 4 A, as well as DC-13 with a rating of 24 VDC at 1 A. Engineered for reliability in safeguarding machinery, the Schmersal position switch is an essential component for any safety-conscious engineering project.
