Specifications

Ambient Temperature Range (°C)	-30 °C to + 80 °C
Contacts	1 NO Contact 1 NC Contact
Rated Impulse Withstand Voltage (kV)	4
Tightening Torque (Nm)	1.2
Weight (kg)	0.057
Maximum Switching Voltage DC (V)	24
Maximum Switching Voltage AC (V)	230
Thermal Test Current (A)	4
Switching Frequency	5000 /h
Minimum Mechanical Life	20,000,000 Operations
Maximum Switching Current (A)	4

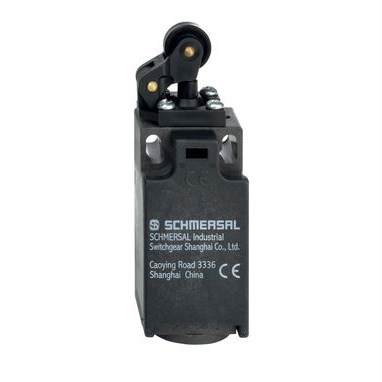

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Actuating Speed	1 m/s
Actuator Type	Offset Roller Lever
Cable Cross Section	0.75 sq-mm
Contact Material	Gold Plated Silver
Degree of Protection	IP67, IP65
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	20000000 Operations
Rated Current	4 A
Rated Voltage	230 VAC
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Weight	53 g
