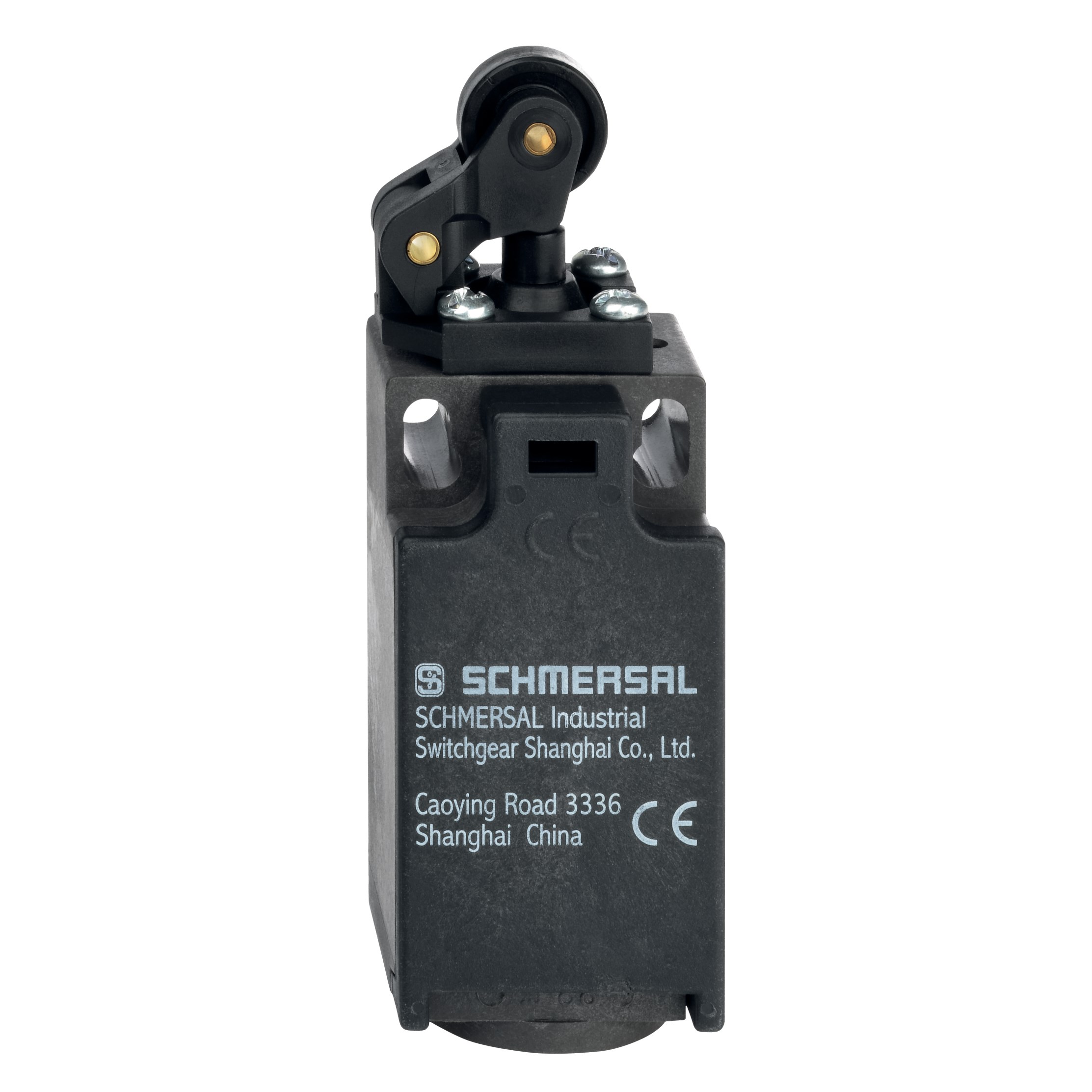

Schmersal 151156129 Position Switch with Safety Function

Product Code: 151156129

  • Offset roller lever actuator for precise control
  • Durable thermoplastic housing
  • IP67 protection against dust and water
  • Operates in temps from -30 to 80°C
  • Complies with IEC 60947-5-1, ISO 13849-1
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -30 to +80
Auxiliary Contacts 1
Cable Cross Section (mm²) 0.75 - 2.5
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current AC-15 (A) 4
Rated Operational Current DC-13 (A) 1
No. of Safety Contacts 1
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Actuator Type Offset Roller Lever
Cable Entry 1 x M20 x 1.5
Degree of Protection IP67
Housing Material Thermoplastic
Operational Temperature -30 to 80 deg C
Rated Current 4 A, 1 A
Rated Insulation Voltage 500 V
Standards and Approvals IEC 60947-5-1, ISO 13849-1
Terminal Type Screw

Description

This position switch features 1 safety contact and 1 auxiliary contact. It can handle a voltage of 230VAC and a current of 4A (AC-15), as well as a voltage of 24VDC and a current of 1A (DC-13). The switch has a screw connection and operates on the snap action switching principle. Its enclosure is made of plastic with glass-fibre reinforcement. It has a rated impulse withstand voltage of 6kV and a degree of protection IP67.
