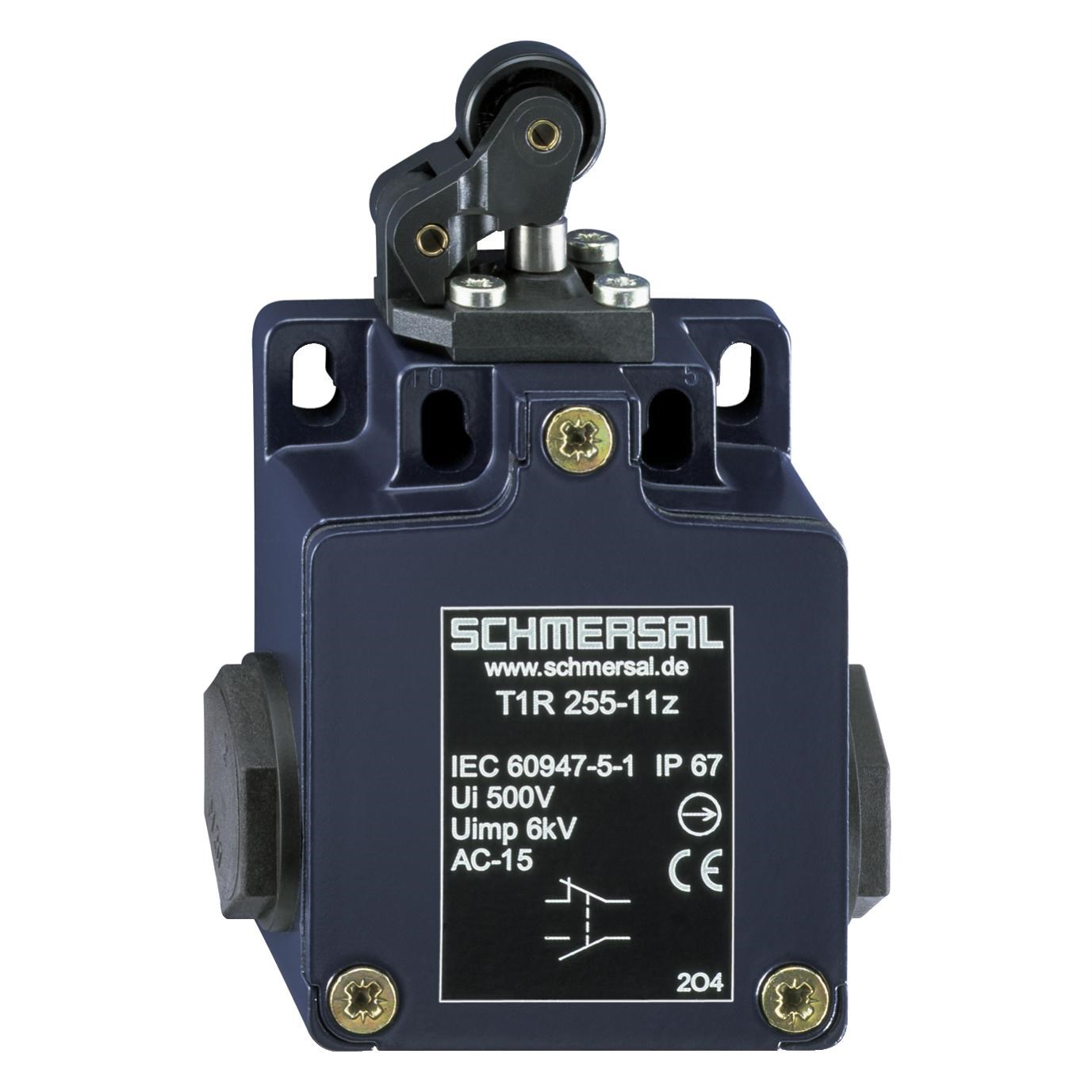

The Series 255 switch is a robust and reliable choice for industrial and commercial applications. Engineered with precision, it operates on a rated voltage of 240 VAC and supports a current of up to 4 A, making it suitable for various electrical environments.
Constructed from durable die-cast zinc metal housing, this switch boasts an impressive degree of protection, meeting IP65 and IP67 standards. This ensures the device is dust-tight and protected against water ingress, ideal for demanding conditions where reliability is paramount.
Compliant with multiple standards such as BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, and ENISO 13849-1, the Series 255 switch guarantees adherence to international safety norms. These certifications affirm its quality and suitability for global markets.
Weighing in at just 165 grams, this lightweight yet sturdy switch features a contact configuration of 1NO+1NC (one normally open and one normally closed contact). The inclusion of one auxiliary contact further enhances its versatility in complex control circuits.
The snap action switching type ensures rapid response times with each operation. Coupled with an offset roller lever actuator type that operates at an actuating speed of 27 mm/minute, the Series 255 offers precise control over mechanical movements. The silver contact material provides excellent conductivity and durability over time.
Designed for longevity, this switch has a remarkable mechanical life expectancy exceeding 20 million operations. Such endurance makes it a cost-effective solution by reducing maintenance needs over its lifecycle.
With a cable cross-section capacity of 0.75 sq-mm, installation is straightforward while maintaining secure connections throughout use. In summary, the Series 255 combines reliability with functionality to meet your technical requirements effectively without compromise on performance or safety standards.
