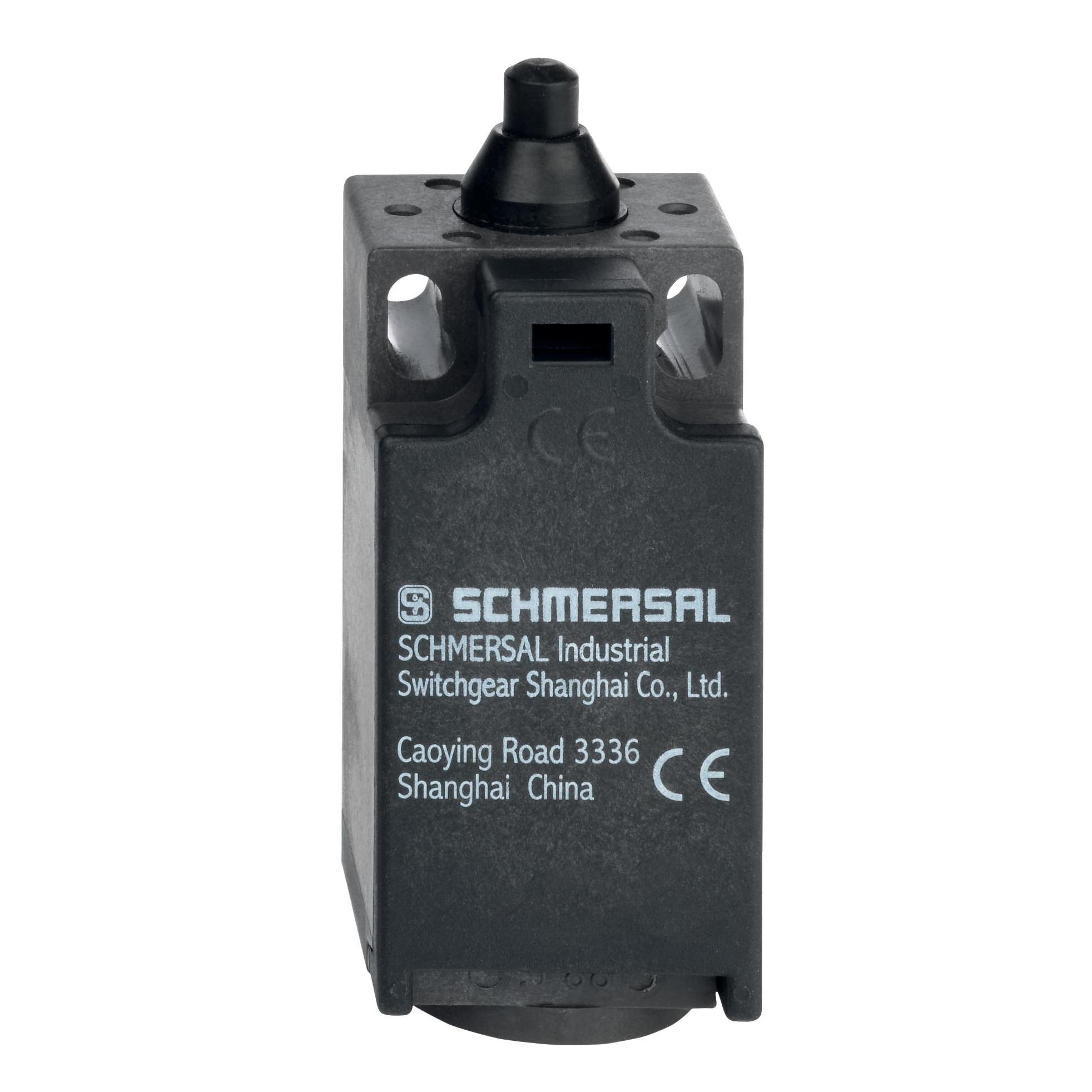

Schmersal 151102243 Position Switch with Safety Function 230VAC

Product Code: 151102243

  • Rated for 230 VAC and 4 A
  • Durable thermoplastic housing
  • IP65/IP67 protection rating
  • Operates in -30 to 80°C range
  • Offset roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Standards EN ISO 13849-1
eCl@ss Number, Version 9.0 27-27-26-03
ETIM 7.0 EC002593
ETIM 6.0 EC002593
eCl@ss Number, Version 11.0 27-27-26-03
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Actuating Element Offset Roller Lever
Actuating Speed 1 m/s
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Operational Temperature -30 to 80 deg C
Rated Current 4 A
Rated Frequency 5000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 30 mm L x 30 mm W x 89.5 mm H
Standards and Approvals EN ISO 13849-1
Weight 55 g
