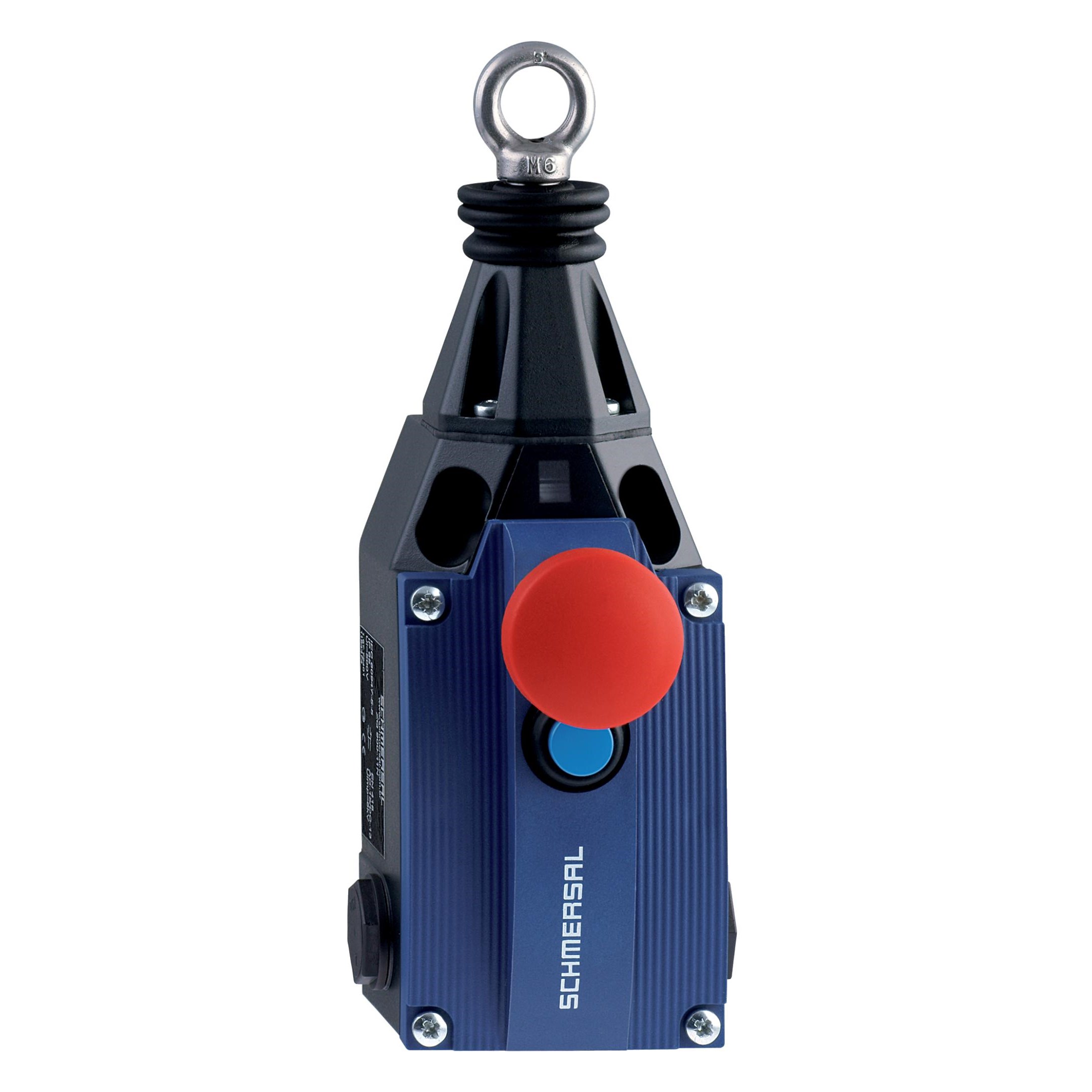

Schmersal 101184474 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184474

  • Rated current of 6 A for efficient operation
  • Durable metal die-cast zinc housing
  • High protection with IP65 rating
  • Operates in -25 to 70°C temperature range
  • Complies with EN & IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Cable Cross Section (mm²) 2.5
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 4
Enclosure Material Plastic, glass-fibre-reinforced
Utilisation Category DC-13 | AC-15
Maximum Ambient Temperature (°C) 80
Minimum Cable Cross Section (mm²) 1.5
Maximum Actuating Speed (m/s) 0.3
No. of Safety Contacts 4
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Minimum Ambient Temperature (°C) 0
Standards EN ISO 13849-1 / EN IEC 60947-5-1 / BG-GS-ET-15
Sensor Length (mm) 32.5
Switching Principle Slow action
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-27-04
Sensor Height (mm) 36
Rated Short-circuit Current (A) 100
ETIM 7.0 EC002549
ETIM 6.0 EC002549
eCl@ss Number, Version 11.0 27-27-27-04
Minimum Mechanical Life 20000000 Operations
Gross Weight (g) 129
Net Weight (g) 616
Maximum Fuse Rating 16 A gL/gG D-fuse
Switching Element Opener (NC)
Product Type Pull-Wire Emergency Stop Switch
Brand SCHMERSAL
Series ZQ
Action Snap Action
Actuator Type Roller lever N200
Cable Length 75 m
Contact Material Silver
Degree of Protection IP65
Housing Material Metal, Die Cast Zinc
Humidity 95%
Mechanical Life 1000000 Cycle
Operational Temperature -25 to 70 deg C
Rated Current 6 A
Rated Insulation Voltage 500 V
Sensor Size 69.7 mm L x 71.5 mm W x 220.3 mm H
Standards and Approvals EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5, EN ISO 13849-1
Terminal Type Cable

Description

Enhance your machine safety with the Schmersal ZQ Series Pull-wire Emergency Stop Switch. This robust metal-enclosed switch features both NO and NC contact elements with snap action for reliable operation. It includes one auxiliary and one safety contact, an emergency-stop button, and a screw connection terminal connector for secure wiring. Rated for a thermal test current of 6 A, it can handle up to 230 VAC at 4 A in AC-15 utilization category and up to 24 VDC at 1 A in DC-13 utilization category. Ideal for industrial applications requiring quick stop functions, the Schmersal pull-wire E-stop is a critical component for ensuring workplace safety.
