Specifications

No. of Safety Contacts	1
Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-40
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	30
No. of Auxiliary Contacts	1
Safety Functions	Yes
Switching Principle	Snap Action
Switchover Time (ms)	5.5ms (Minimum)
Switching Frequency	5000/h
Sensor Width (mm)	30
Sensor Height (mm)	86
Rated Short-circuit Current (A)	1000
Minimum Mechanical Life	20000000 Operations
Minimum Actuating Speed (mm/min)	20
Maximum Fuse Rating	6 A gG D-fuse
Switching Element	NO Contact, NC Contact
Minimum Actuating Force (N)	12
Maximum Bounce Duration (ms)	3
Minimum Positive Break Force (N)	19
Rated Operational Voltage AC-15 (V)	240V AC
Rated Operational Voltage DC-13 (V)	24V DC
Maximum Cable Cross Section (mm²)	2.5
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	6
Maximum Ambient Temperature (°C)	80
Minimum Cable Cross Section (mm²)	0.75
Maximum Actuating Speed (m/s)	1
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	1
Utilisation Category	DC-13

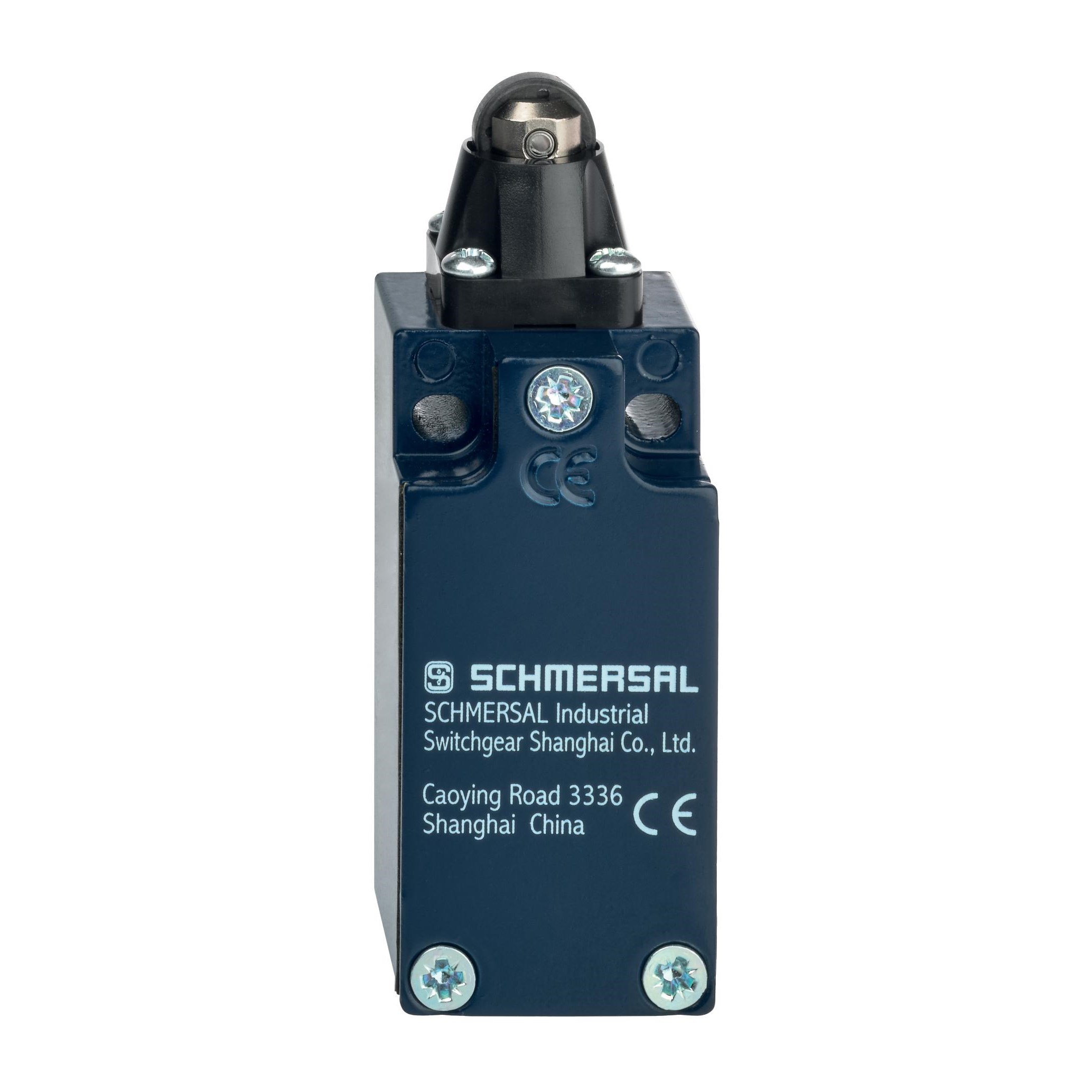

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Roller Plunger
Actuating Speed	20 mm/min
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Metal, Die Cast Zinc
Mechanical Life	20000000 Cycles
Operational Temperature	-40 to 80 deg C
Rated Current	4 A, 1 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	240 VAC, 24 VDC
Sensor Size	30 mm L x 30 mm W x 86 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
