Specifications

Standards	EN ISO 13849-1
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 7.0	EC002593
ETIM 6.0	EC002593
eCl@ss Number, Version 11.0	27-27-26-03

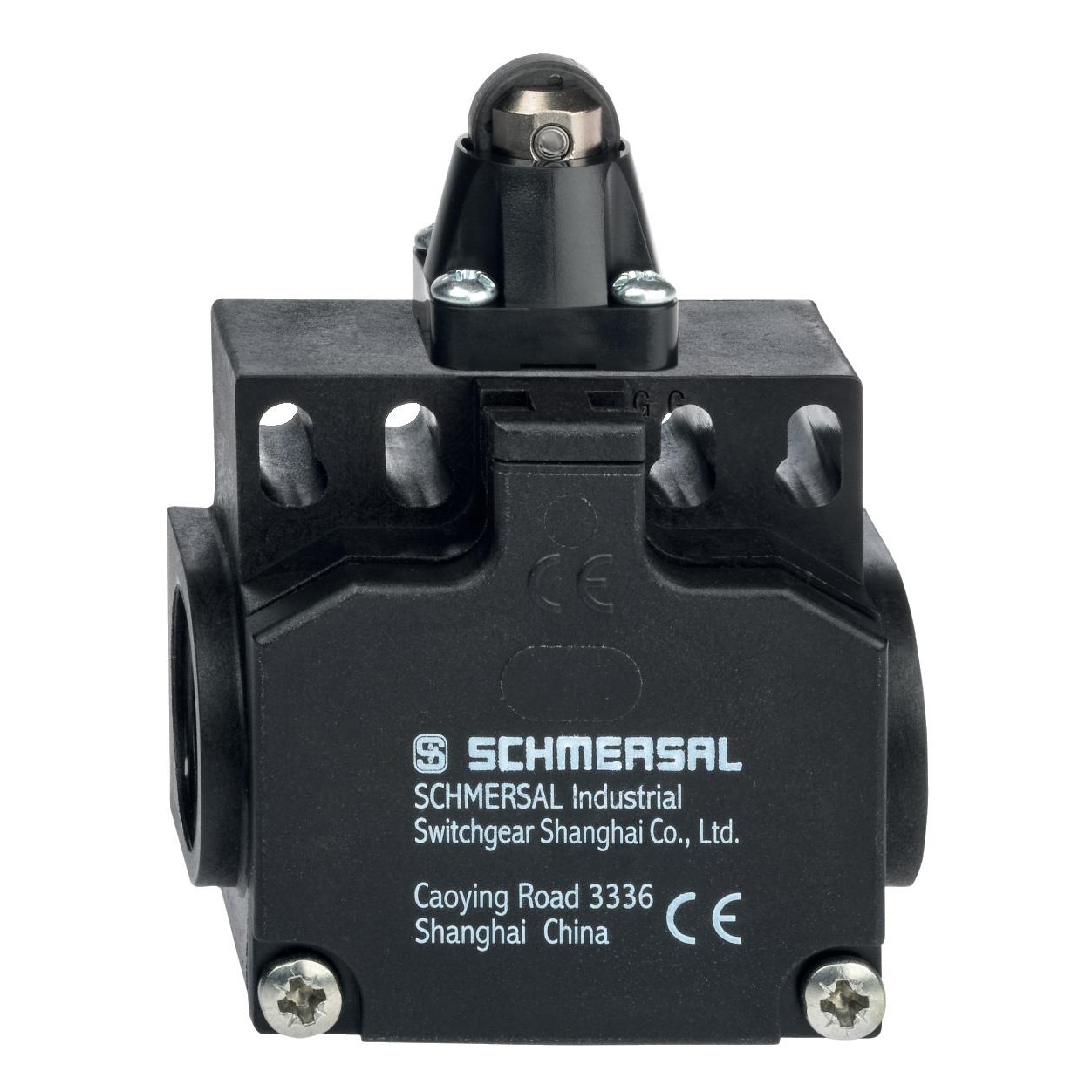

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Roller Plunger
Actuating Speed	20 mm/min
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	20000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	31 mm L x 58 mm W x 67 mm H
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight	80 g
