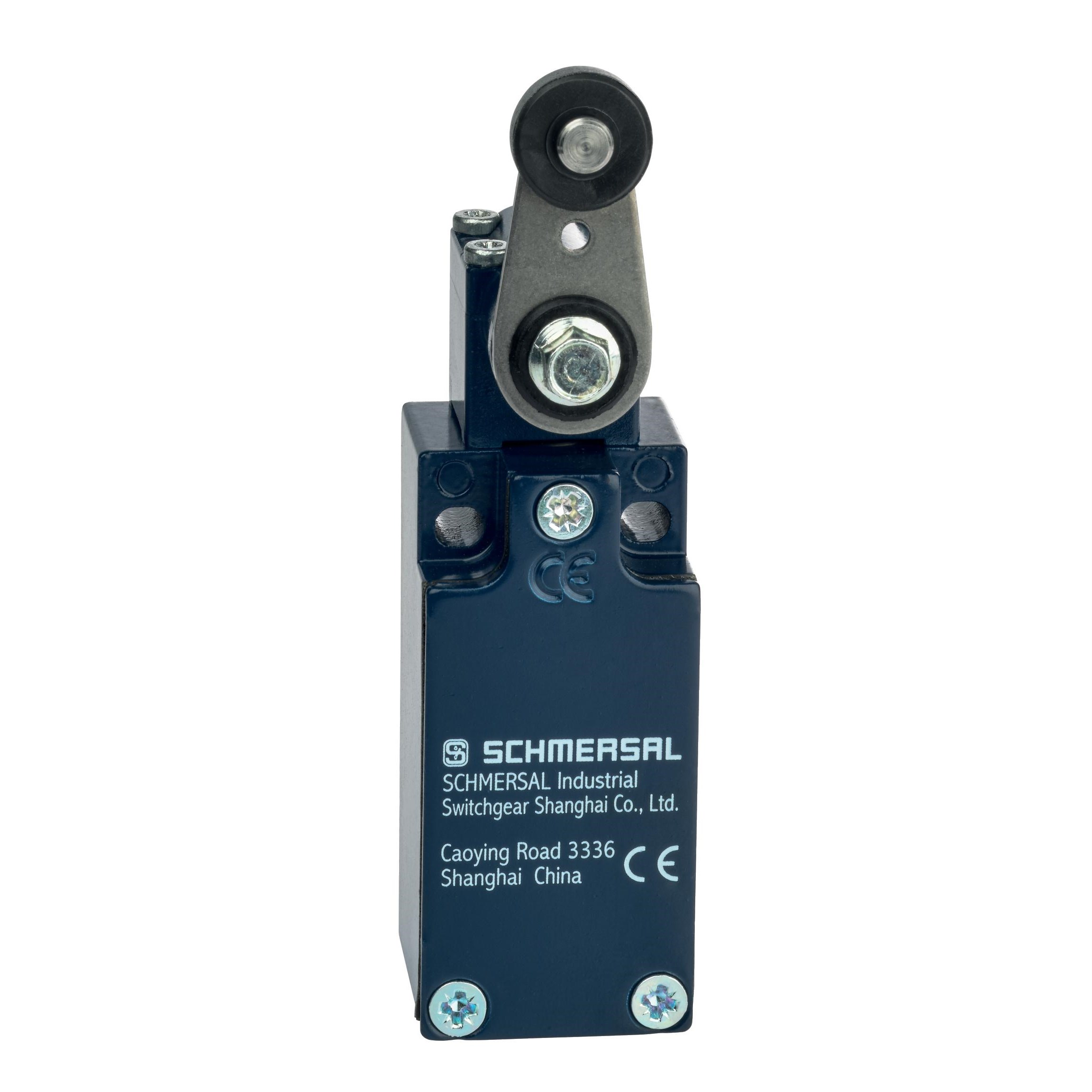

Schmersal 151095086 Position Switch 230VAC 1NO+1NC

Product Code: 151095086

Metal, die-cast zinc housing for durability
IP65/IP67 protection against dust and water
Operates in -30 to 80°C temperature range
Snap action with roller lever actuator
Complies with EN IEC 60947-5-1 standards

Specifications

Standards	EN ISO 13849-1 / EN IEC 60947-5-1 / BG-GS-ET-15
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 7.0	EC002593
ETIM 6.0	EC002593
eCl@ss Number, Version 11.0	27-27-26-03
Product Type	Position Switch
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Roller Lever
Actuating Speed	687 mm/min
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Metal, Die Cast Zinc
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	46 mm L x 30 mm W x 110.5 mm H
Standards and Approvals	BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Weight	211 g
