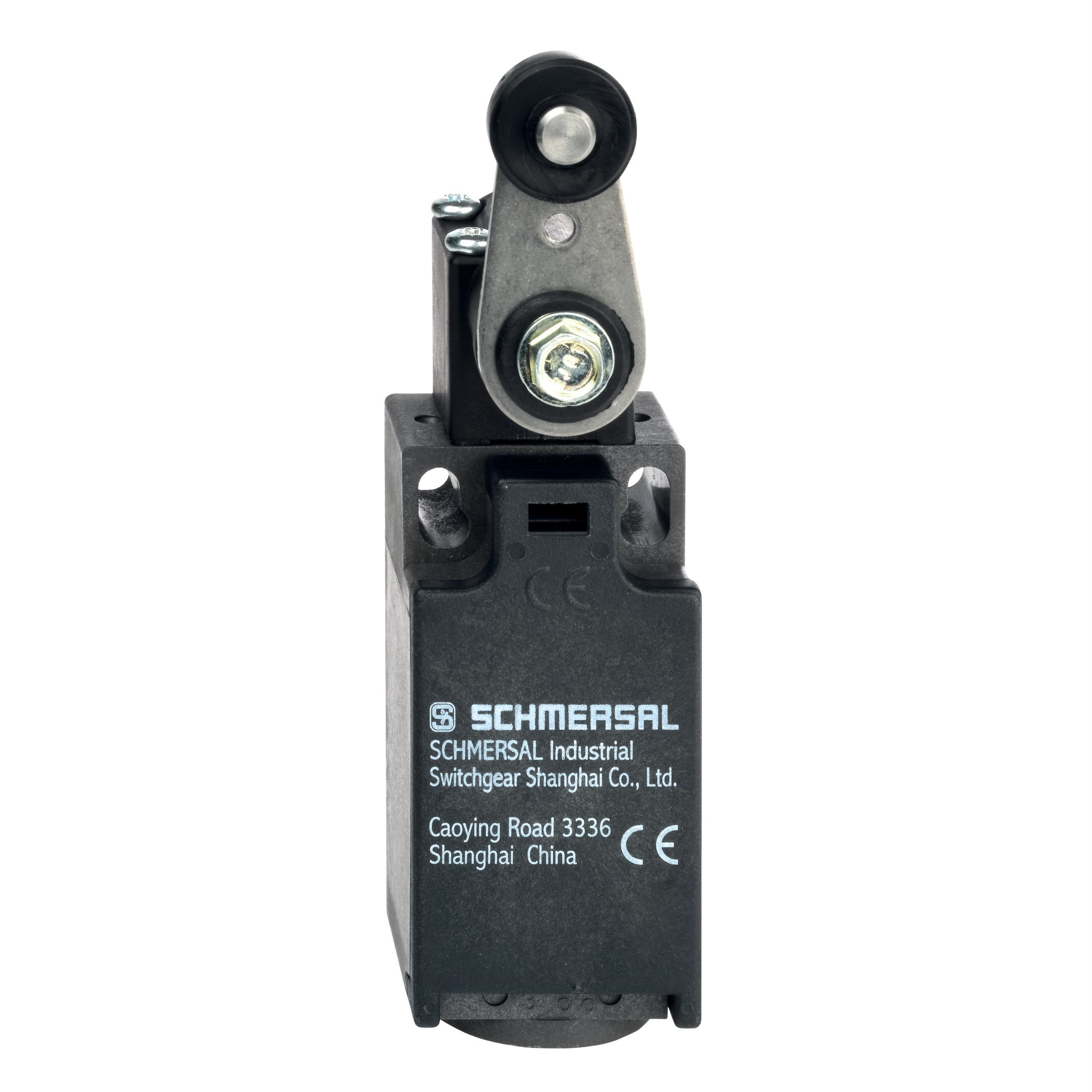

Schmersal 151156131 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151156131

  • Snap action for quick response
  • Durable with 20 million cycles
  • IP67 protection against dust/water
  • Operates in -30 to 80°C range
  • Reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Safety Contacts 1
Thermal Test Current (A) 10
Minimum Ambient Temperature (°C) -30
Termination Screw Terminals M20 x 1.5
Standards EN ISO 13849-1
Sensor Length (mm) 46
No. of Auxiliary Contacts 1
Safety Functions Yes
Switching Principle Snap Action
Switchover Time (ms) 5.5ms (Maximum)
Switching Frequency 5000/h
Sensor Width (mm) 30
Sensor Height (mm) 108.5
Rated Short-circuit Current (A) 1000
Minimum Mechanical Life 20000000 Operations
Minimum Actuating Speed (mm/min) 687
Maximum Fuse Rating 6 A gG D-fuse
Switching Element NO Contact, NC Contact
Lever Material Metal Film
Maximum Bounce Duration (ms) 3
Positive Break Torque (Nm) 0.185
Rated Operational Voltage AC-15 (V) 230V AC
Rated Operational Voltage DC-13 (V) 24V DC
Maximum Cable Cross Section (mm²) 2.5
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 6
Maximum Ambient Temperature (°C) 80
Minimum Cable Cross Section (mm²) 0.75
Maximum Actuating Speed (m/s) 1
Rated Operational Current AC-15 (A) 4
Rated Operational Current DC-13 (A) 1
Utilisation Category DC-13
Castor Material Plastic
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Action Snap Action
Actuating Element Roller Lever
Actuating Speed 687 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 20000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 4 A, 1 A
Rated Frequency 5000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC, 24 VDC
Sensor Size 46 mm L x 30 mm W x 108.5 mm H
Standards and Approvals EN ISO 13849-1
