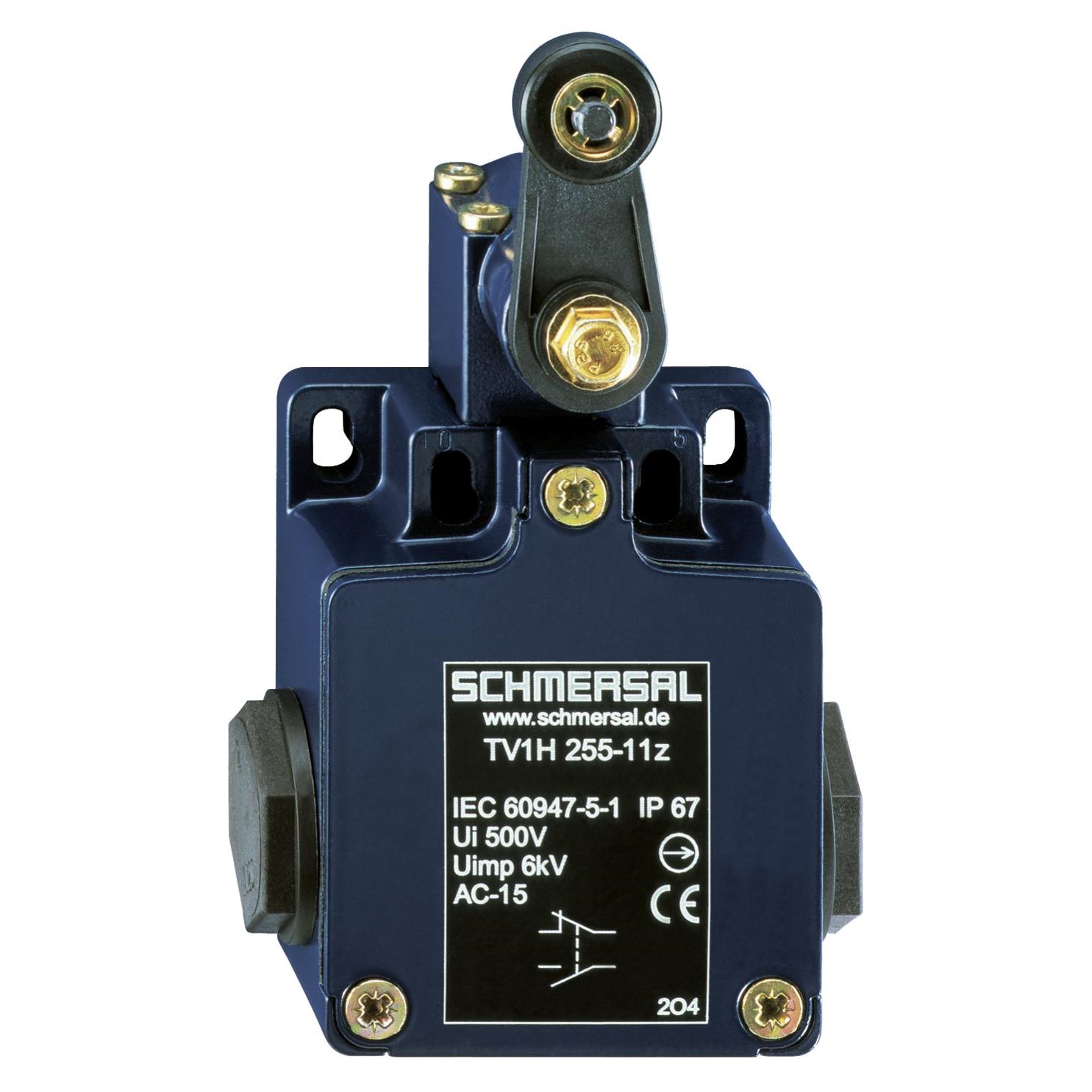

The Series 255 is engineered to meet the demands of industrial and commercial environments where reliability and durability are paramount. This product operates at a rated voltage of 240 VAC and supports a rated current of 4 A, making it suitable for a range of applications.
Constructed from robust die-cast zinc, the housing ensures longevity and resilience in challenging conditions. The device boasts an IP65/IP67 degree of protection, providing excellent resistance against dust ingress and water exposure. These features make it ideal for use in environments where moisture or particulate matter could be a concern.
Compliance with standards such as BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, and ENISO 13849-1 underscores its adherence to rigorous safety and performance criteria. Weighing just 213 grams, this lightweight design does not compromise on strength or functionality.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact. With one auxiliary contact available, the Series 255 offers flexibility in its integration into various systems. Its snap action switching type ensures swift response times essential for precise operations.
A roller lever actuator type enables smooth actuation with an actuating speed of 92 mm/min. The silver contact material enhances conductivity while ensuring long-lasting performance under frequent use.
Designed to accommodate a cable cross-section of up to 0.75 square millimeters, installation is straightforward without sacrificing electrical efficiency or safety standards.
Remarkably durable with a mechanical life expectancy reaching up to twenty million operations, this product promises reliable service over extensive periods even under demanding usage scenarios.
In summary, the Series 255 combines robust construction with high-performance specifications suitable for diverse industrial applications requiring dependable operation within specified electrical parameters.
