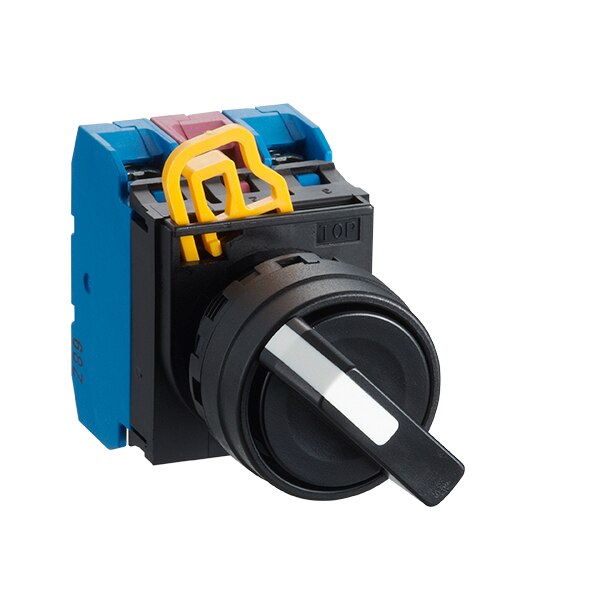

IDEC YW1S-3E21 Selector Switch 3Position 2NO+1NC Left Center Right Maintained Round Plastic 30mm W

Product Code: YW1S-3E21

  • Rated for 10 A, 50/60 Hz use
  • Compact design: 30x41.4x69.8 mm
  • IP20/IP65 protection for durability
  • Maintained function with 2NO+1NC contacts
  • Fits 22 mm mounting holes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 2NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left, Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-3E21 is a 3-position maintained selector switch designed for efficient control within industrial environments. This compact unit features a durable plastic bezel and space-saving 10mm thick contact blocks. Its lightweight design and removable operator enhance user convenience, while the separate contact block simplifies installation and maintenance procedures. Ideal for applications where space is at a premium, this selector switch offers reliable performance in a streamlined package.
