Product Code: MPS2NKOCBB20

Non-illuminated black plastic selector switch
Operates in -25 to 70°C temperature range
Complies with CSA, DIN, EN, IEC, UL standards
Rated insulation voltage of 690V and 6kV impulse withstand
Features momentary key actuator with 2NO contacts

Specifications

Contacts	2NO
No. of Positions	2
Spring Return From	C->B
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Maintained Positions	Not Applicable
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Key
Colour	Black
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Non-Illuminated
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

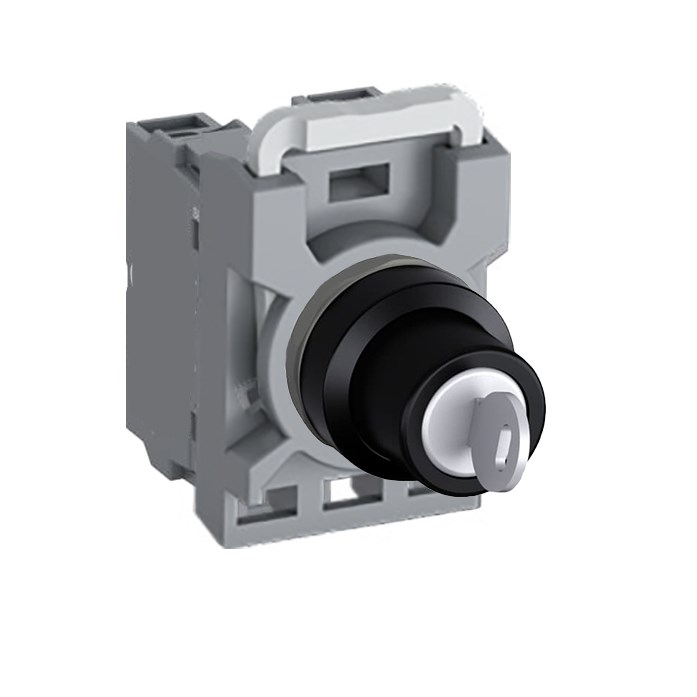

This non-illuminated selector switch kit is key operated with key code 455. It is black in colour and has a 2 position C to B momentary function. The contact configuration is 2NO (normally open). This switch is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
