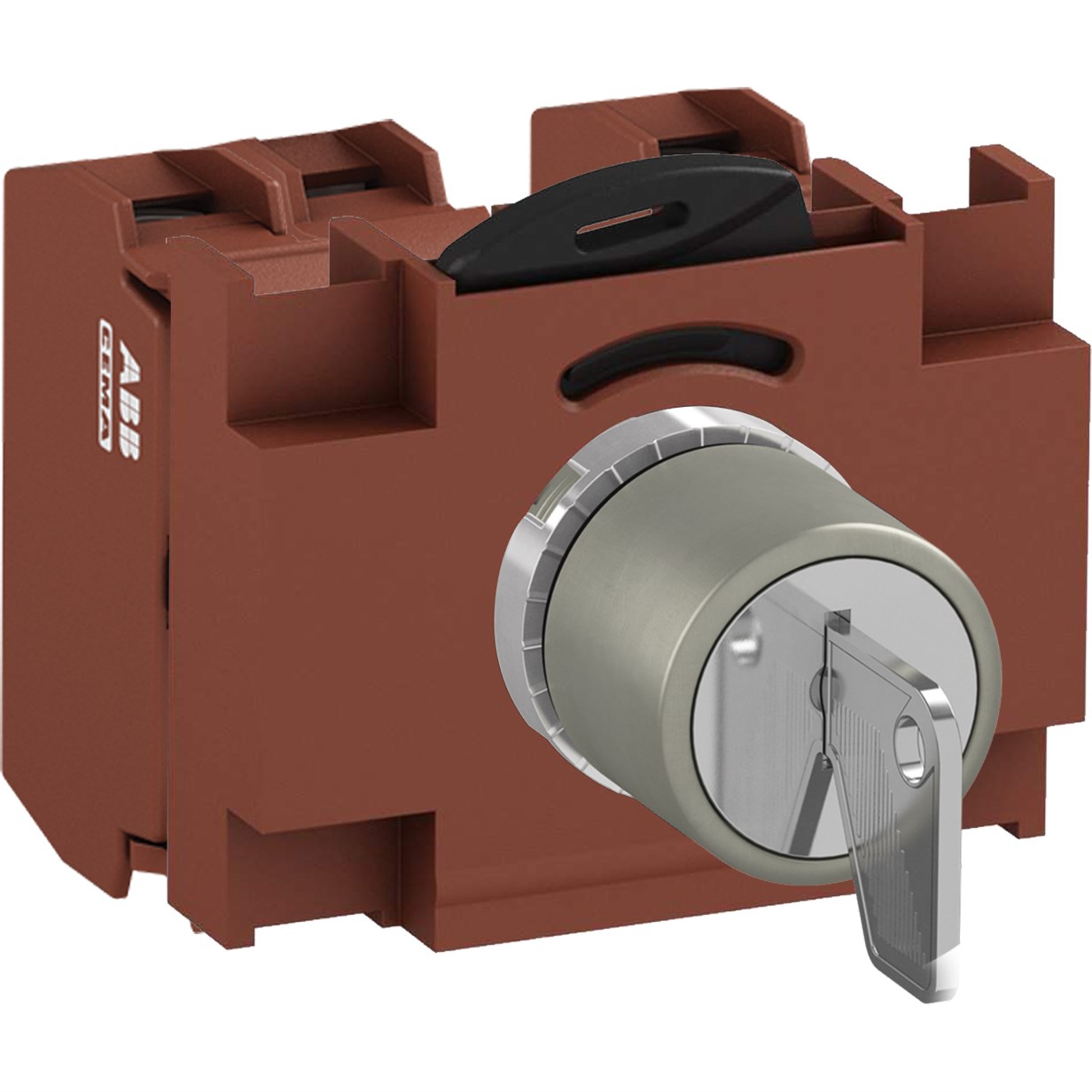

ABB MMS3NKAABCS30 Selector Switch Kit 3Position 3NO Non-Illuminated Screw Maintained Key Metal A B C

Product Code: MMS3NKAABCS30

  • Durable metal construction for robust use
  • Wide temp range: -30 to 70°C
  • High protection with IP66 rating
  • Key actuator with maintained function
  • Rated insulation voltage up to 690V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NO
No. of Positions 3
Maintained Positions A,B,C
Spring Return From Not Applicable
LED Block Rated Voltage Not Applicable
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Key
Colour Not Applicable
Connection Type Screw
Contact Configuration 3NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
