Specifications

Contacts	3NO
No. of Positions	3
Maintained Positions	Not Applicable
Spring Return From	A,C->B
LED Block Rated Voltage	Not Applicable
Bezel Material	Metal

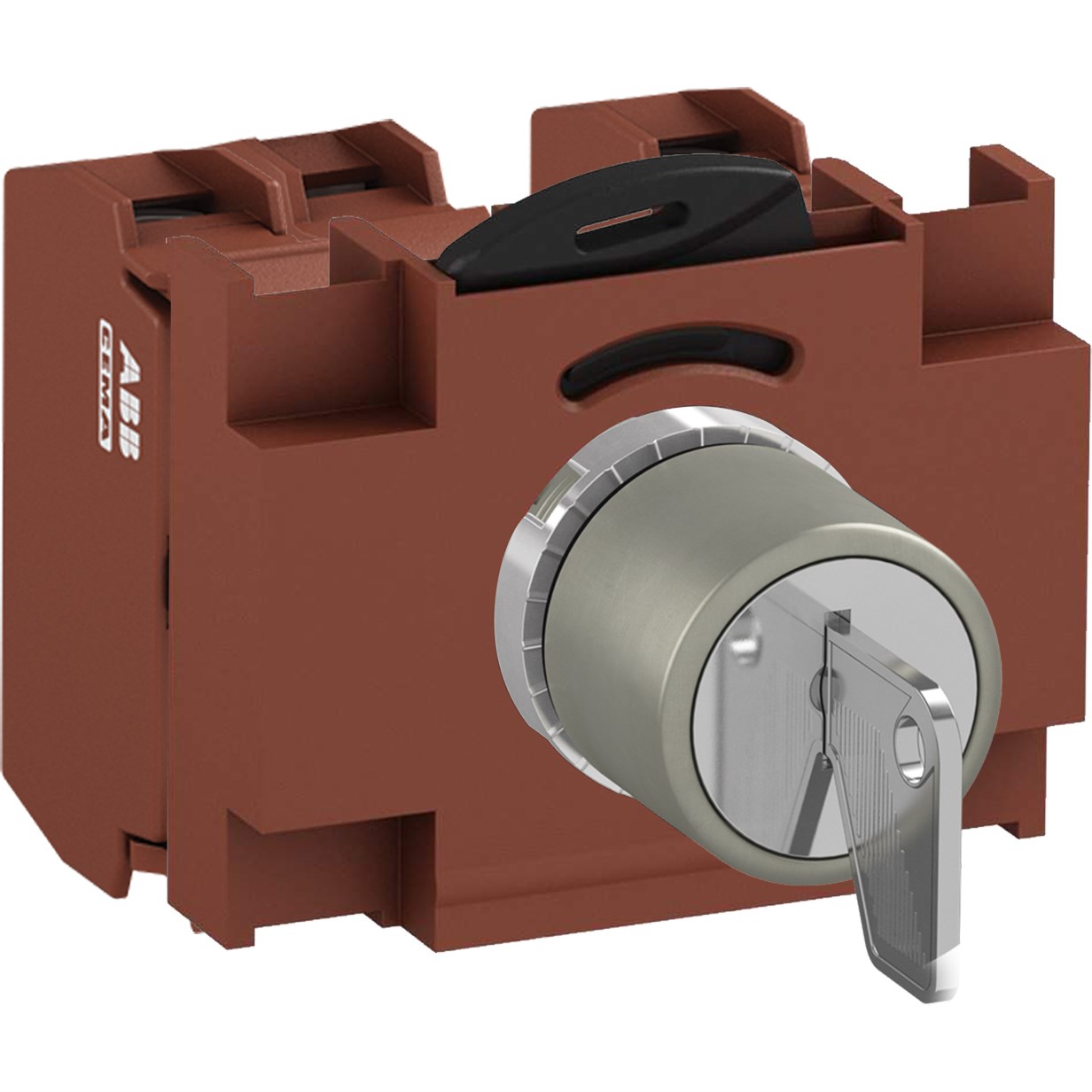

Product Type	Selector Switch Kit
Brand	ABB
Series	MMS
Actuator Type	Key
Colour	Not Applicable
Connection Type	Faston
Contact Configuration	3NO
Cutout Size	22 mm
Degree of Protection	IP66
Function	Momentary
Illumination	Non-Illuminated
Light Blocks Type	Not Applicable
Maintained Position	A, C, B
Material	Metal
Number of Positions	3
Operational Temperature	-30 to 70 deg C
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
