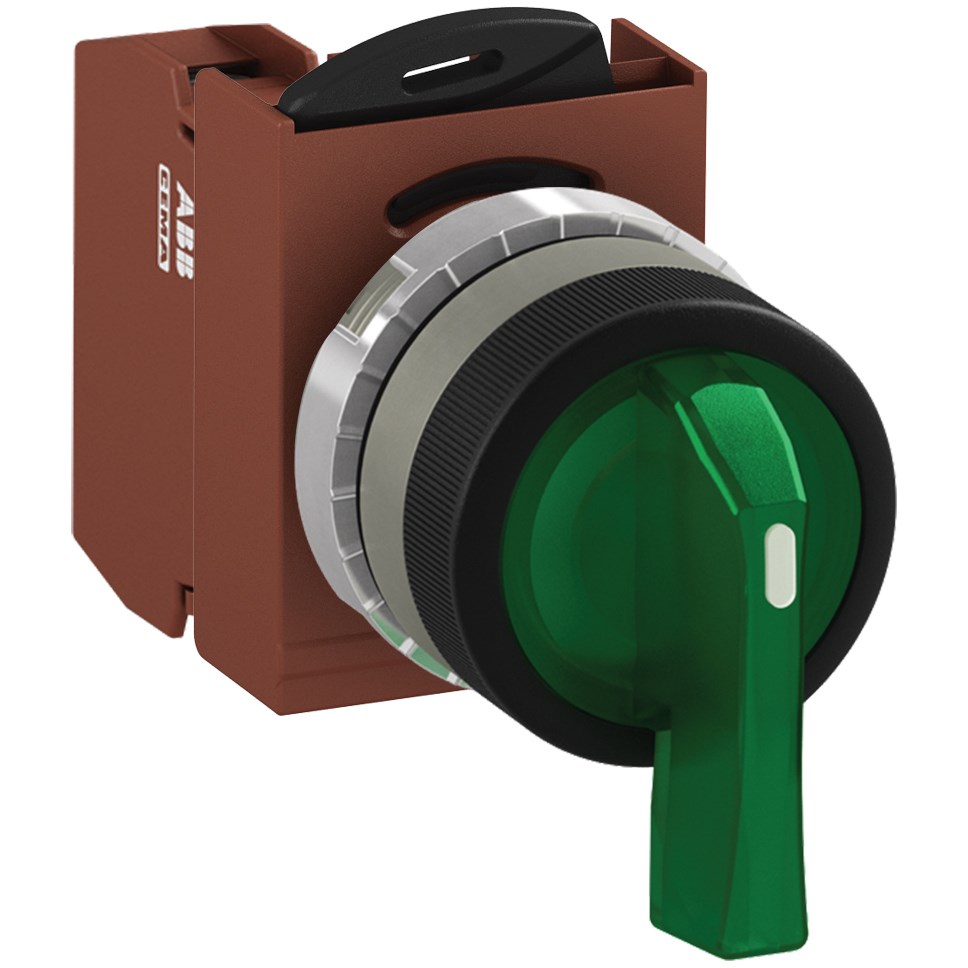

ABB MMS2ILAACGSP410 Selector Switch Kit Green 230VAC 2Position 1NO Illuminated Screw Maintained Long Handle Metal

Product Code: MMS2ILAACGSP410

  • 230 VAC illuminated with green metal finish
  • Operates in -30 to 70°C, IP66 protection
  • Meets CSA, IEC/EN, UL standards
  • Long handle actuator with maintained function
  • Screw connection, 1NO contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage 230 VAC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS2
Actuator Type Long Handle
Colour Green
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, C
Material Metal
Number of Positions 2
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
