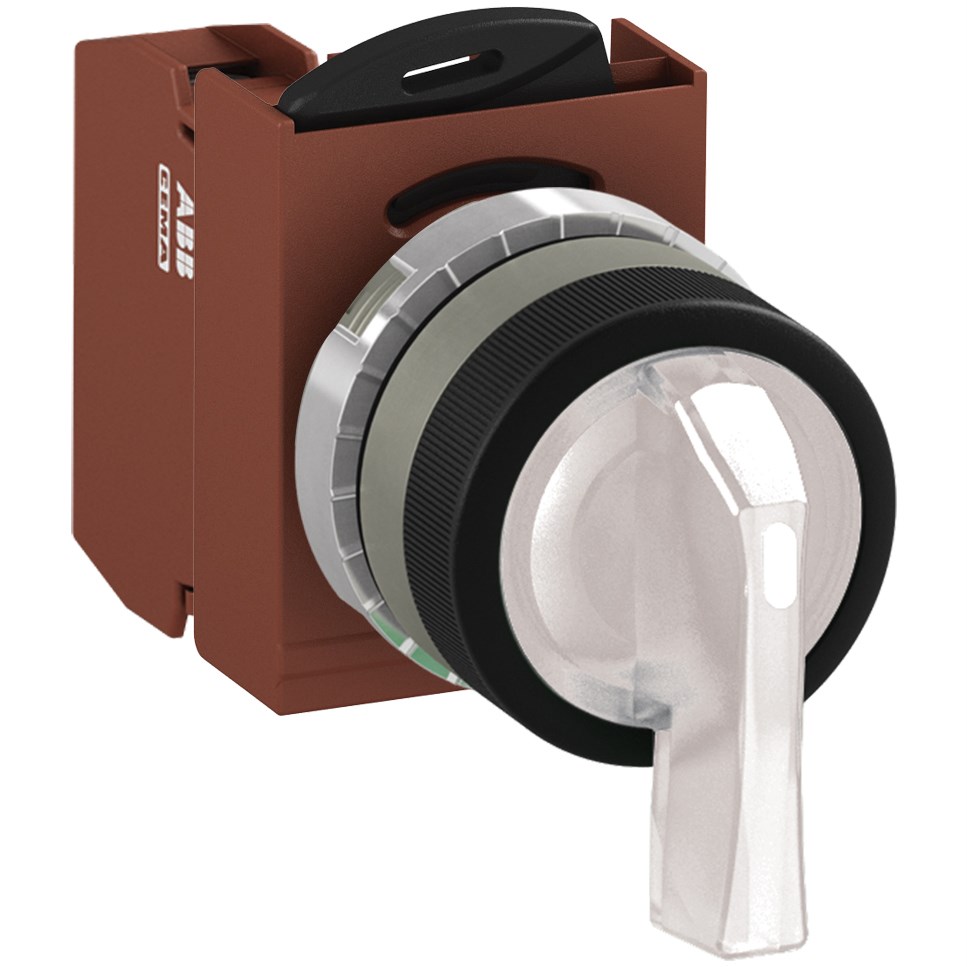

ABB MMS2ILAACWSP301 Selector Switch Kit White 110VAC 2Position 1NC Illuminated Screw Maintained Long Handle Metal

Product Code: MMS2ILAACWSP301

  • Operates on 110 VAC with illumination
  • Durable metal construction, IP66 rated
  • Wide temp range: -30 to 70°C
  • Long handle actuator for maintained function
  • Complies with CSA, IEC, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS2
Actuator Type Long Handle
Colour White
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, C
Material Metal
Number of Positions 2
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
