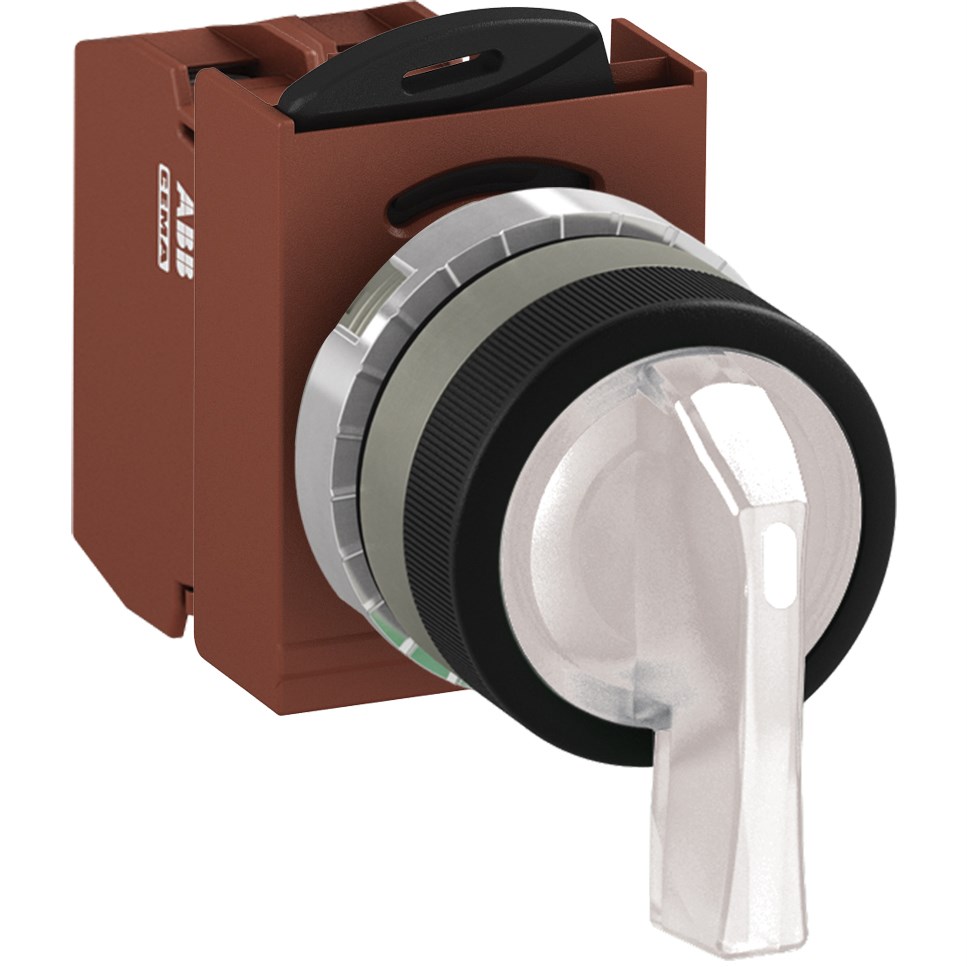

ABB MMS2ILAACWSL210 Selector Switch Kit White 24VAC/DC 2Position 1NO Illuminated Screw Maintained Long Handle

Product Code: MMS2ILAACWSL210

  • Operates at 24 VAC/VDC with LED illumination
  • Durable metal build with IP66 protection
  • Functions in extreme temps: -30 to 70°C
  • Complies with CSA, IEC, UL standards
  • Screw connection for secure installation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage 24 VAC/DC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS2
Actuator Type Long Handle
Colour White
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type LED Block
Maintained Position A, C
Material Metal
Number of Positions 2
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
