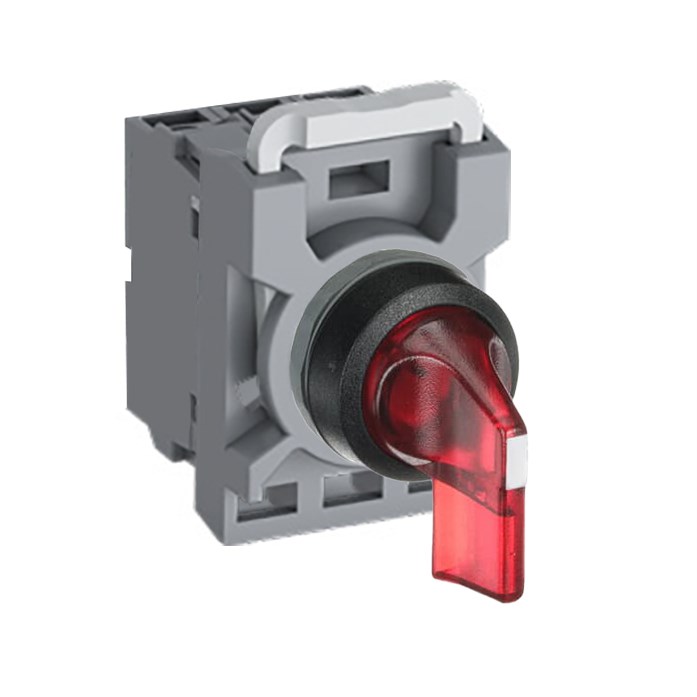

ABB MPS2ILABCR020 Selector Switch Kit Red 12VDC 2Position 2NO Illuminated Maintained Long Handle Plastic

Product Code: MPS2ILABCR020

  • 12 VDC illuminated red selector switch
  • Operates in -25 to 70°C temperature range
  • Long handle with maintained function
  • 2NO contact configuration, 10 A thermal current
  • Fits standard 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
No. of Positions 2
Rated Voltage DC (V) 12
Maintained Positions B,C
Spring Return From Not Applicable
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Long Handle
Colour Red
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 (Front), IP20 (Terminals)
Function Maintained
Illumination Illuminated
Lamp Type Built-in LED
LED Colour Red
Maintained Position B, C
Material Plastic
Mode of Operation Maintained B to C
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VDC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated selector switch kit features a red colour and has a 2-position return from B to C. It is equipped with a long handle for easy operation and has an integrated red LED. The switch operates on 12V DC power and has 2 normally open (NO) contacts. It is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
