Specifications

Contacts	1NC
No. of Positions	2
Maintained Positions	B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic

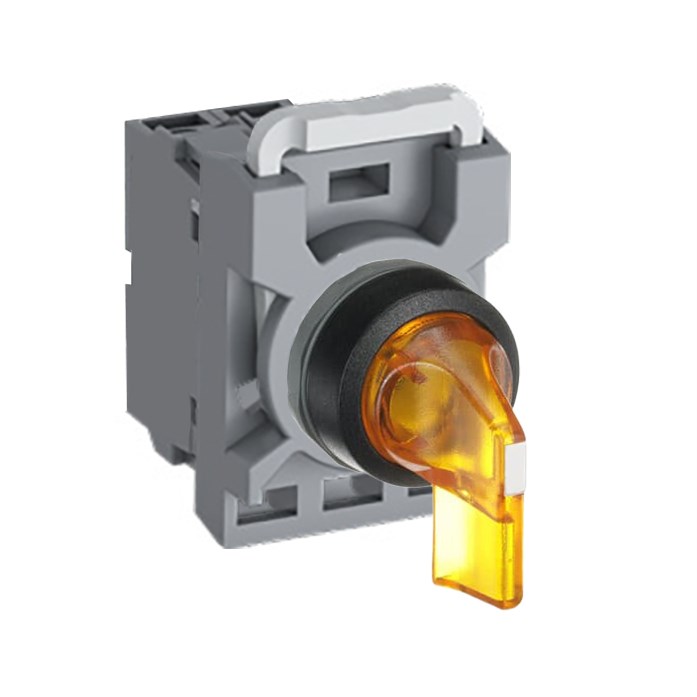

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Yellow
Contact Configuration	1NC
Cutout Size	22 mm
Function	Maintained
Illumination	Illuminated
Maintained Position	B, C
Material	Plastic
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
