Specifications

Contacts	1NO
No. of Positions	2
Spring Return From	C->B
LED Block Rated Voltage	220 VDC
Bezel Material	Plastic
Maintained Positions	Not Applicable

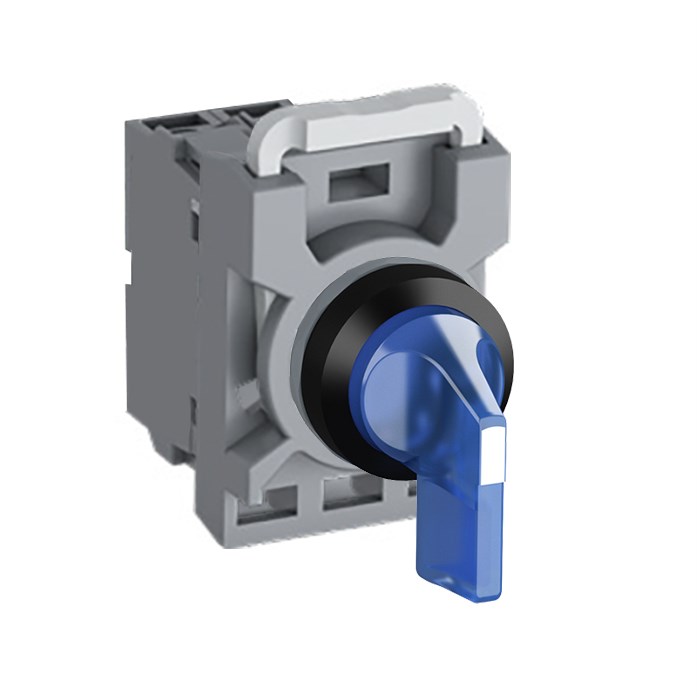

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Blue
Contact Configuration	1NO
Cutout Size	22 mm
Function	Momentary
Illumination	Illuminated
Maintained Position	C, B
Material	Plastic
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
