Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage AC/DC (V)	24
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	24 VAC/DC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Clear
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	White
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	24 VAC/VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Selector Switch Kit is a clear, 2-position switch with a return from position C to B. It features a long handle and an integrated LED that emits white light. The switch operates on 24V AC/DC power and has 2 normally open (NO) contacts. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

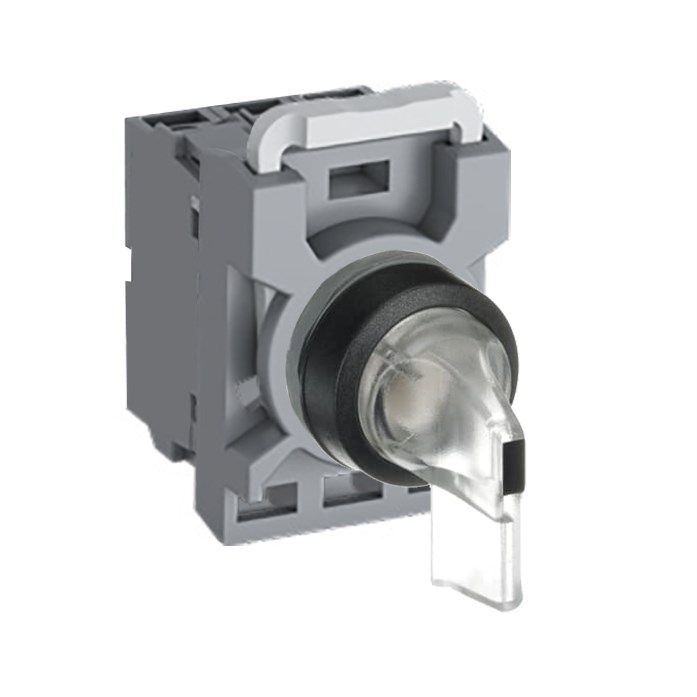

ABB MPS2ILOCBC120 Selector Switch Kit Clear 24VAC/DC 2Position 2NO Illuminated Momentary Long Handle Plastic

Product Code: MPS2ILOCBC120
