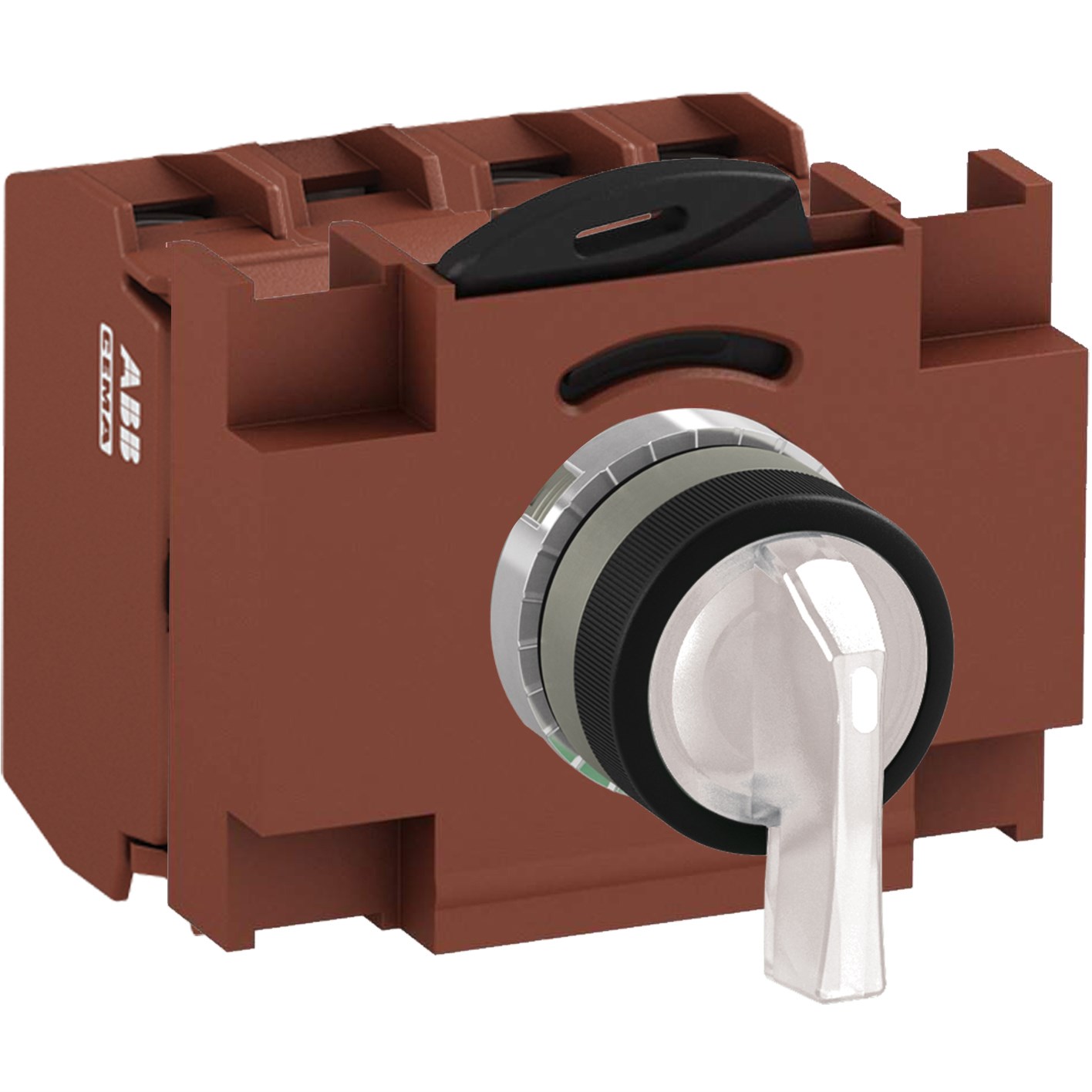

ABB MMS3ILAABCWSP430 Selector Switch Kit White 230VAC 3Position 3NO Illuminated Screw Maintained Long Handle

Product Code: MMS3ILAABCWSP430

  • Rated Voltage: 230 VAC
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Long handle actuator, maintained function
  • Complies with CSA, IEC, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NO
No. of Positions 3
Maintained Positions A,B,C
Spring Return From Not Applicable
LED Block Rated Voltage 230 VAC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Long Handle
Colour White
Connection Type Screw
Contact Configuration 3NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
