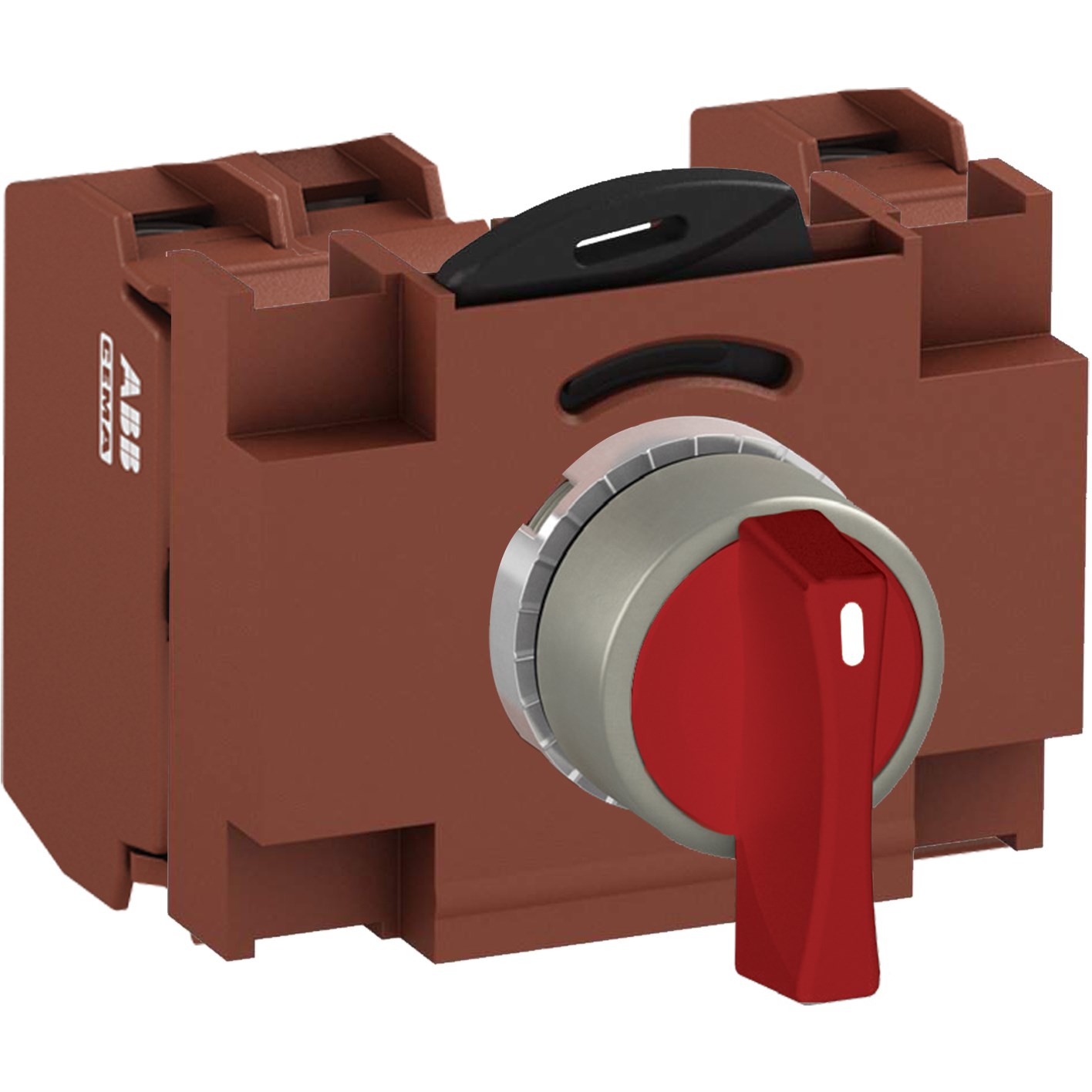

ABB MMS3NLAABCRS03 Selector Switch Kit Red 3Position 3NC Non-Illuminated Screw Maintained Long Handle Metal

Product Code: MMS3NLAABCRS03

  • Non-illuminated, red metal design
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C range
  • Screw connection; 22 mm cutout size
  • Maintained function with long handle actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NC
No. of Positions 3
Maintained Positions A,B,C
Spring Return From Not Applicable
LED Block Rated Voltage Not Applicable
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Long Handle
Colour Red
Connection Type Screw
Contact Configuration 3NC
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
