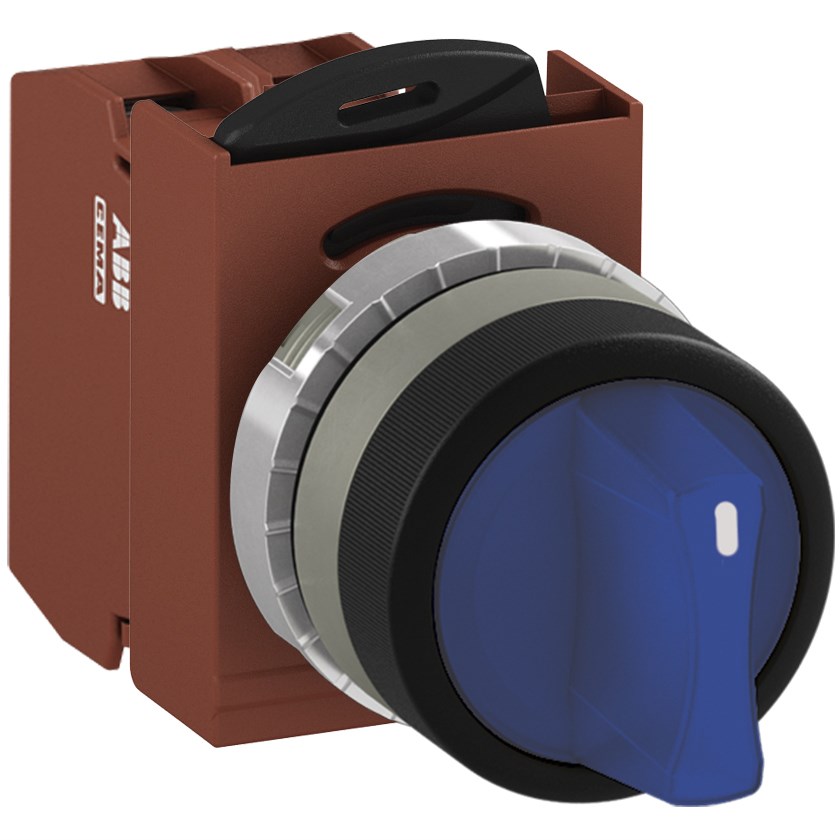

ABB MMS2ISAACLSL310 Selector Switch Kit Blue 110VAC 2Position 1NO Illuminated Screw Maintained Short Handle

Product Code: MMS2ISAACLSL310

  • Operates at 110 VAC with blue illumination
  • Durable metal construction, IP66 protection
  • Wide temp range: -30 to 70°C
  • Compliant with CSA, IEC/EN, UL standards
  • Easy screw connection with 22 mm cutout
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS2
Actuator Type Short Handle
Colour Blue
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type LED Block
Maintained Position A, C
Material Metal
Number of Positions 2
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
