Specifications

Contacts	1NC
No. of Positions	2
Maintained Positions	A,C
Spring Return From	Not Applicable
LED Block Rated Voltage	12 VAC/DC
Bezel Material	Metal

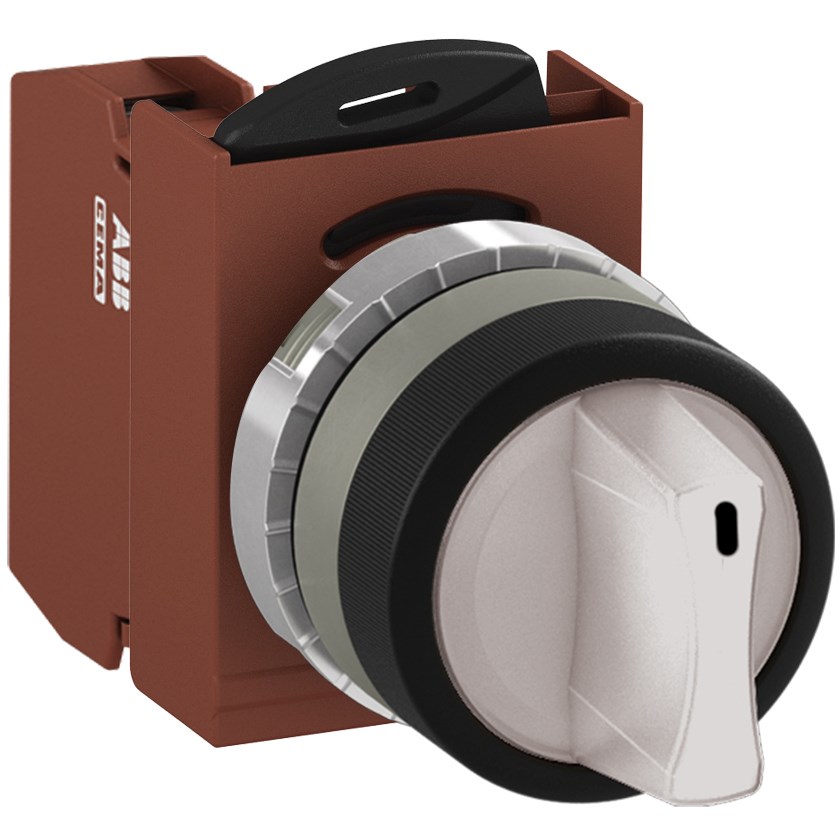

Product Type	Selector Switch Kit
Brand	ABB
Series	MMS2
Actuator Type	Short Handle
Colour	White
Connection Type	Faston
Contact Configuration	1NC
Cutout Size	22 mm
Degree of Protection	IP66
Function	Maintained
Illumination	Illuminated
Light Blocks Type	Power Supply
Maintained Position	A, C
Material	Metal
Number of Positions	2
Operational Temperature	-30 to 70 deg C
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VAC/VDC
Standards and Approvals	CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
