Specifications

Contacts	1NO + 1NC
No. of Positions	2
Rated Voltage DC (V)	12
Maintained Positions	A,C
Spring Return From	Not Applicable
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Blue
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Blue
Maintained Position	A, C
Material	Plastic
Mode of Operation	Maintained A to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

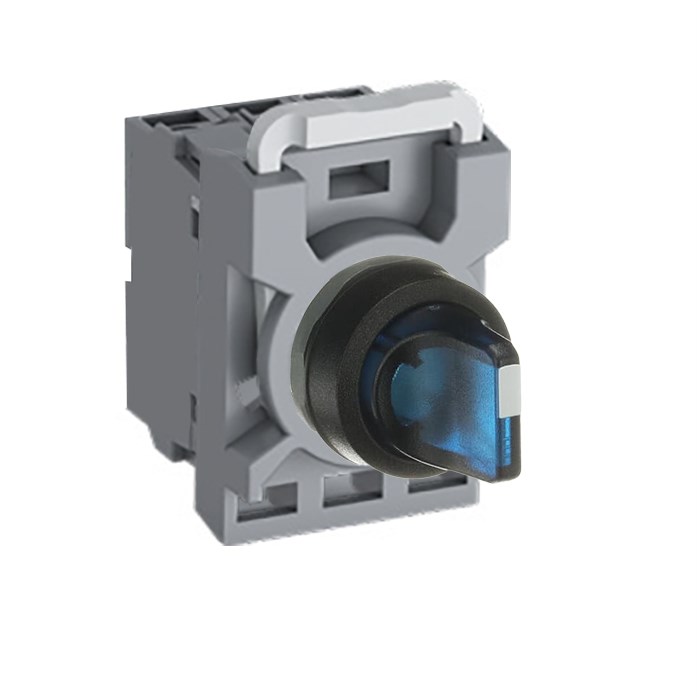

This illuminated selector switch kit features a blue colour and has a 2-position return from A to C. It has a short handle and is designed to be maintained. The switch also includes an integrated blue LED. It operates on 12V DC power and has 1 normally open (NO) contact and 1 normally closed (NC) contact. The switch is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPS2ISAACL011 Selector Switch Kit Blue 12VDC 2Position 1NO+1NC Illuminated Maintained Short Handle Plastic

Product Code: MPS2ISAACL011
