Product Code: MPS2ISAACC011

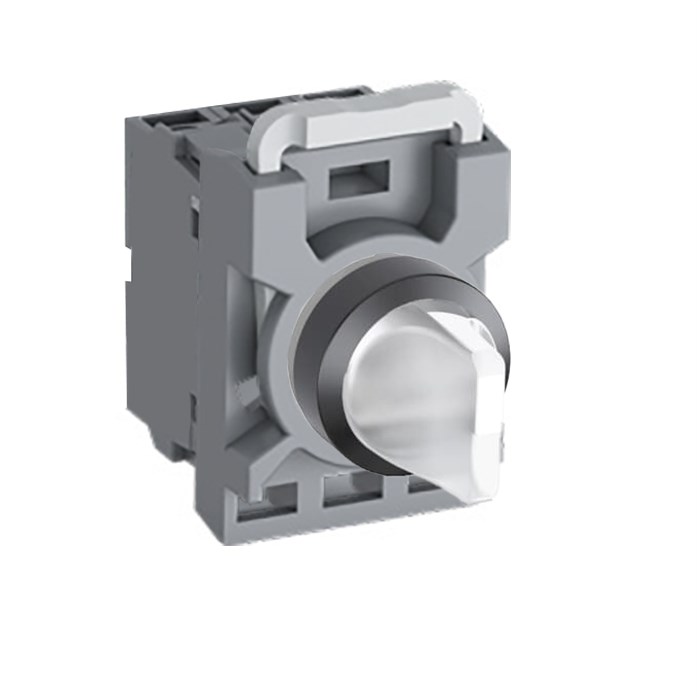

Illuminated selector switch for clear visibility
Operates at 12 VDC with a 22 mm cutout size
Short handle actuator with maintained function
Durable plastic construction; -25 to 70°C op. temp.
Complies with CSA, DIN, EN, IEC, UL standards

Specifications

Contacts	1NO + 1NC
No. of Positions	2
Rated Voltage DC (V)	12
Spring Return From	Not Applicable
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Maintained Positions	A,C
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Clear
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	White
Maintained Position	A, C
Material	Plastic
Mode of Operation	Maintained A to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Selector Switch Kit is a clear, 2-position switch that returns from position A to C. It features a short handle and an integrated LED in white colour. The switch operates on 12V DC power and has 1 normally open (NO) contact and 1 normally closed (NC) contact. This kit is part of a modular plastic range and has an IP66 rating for the front panel and an IP20 rating for the terminals.
