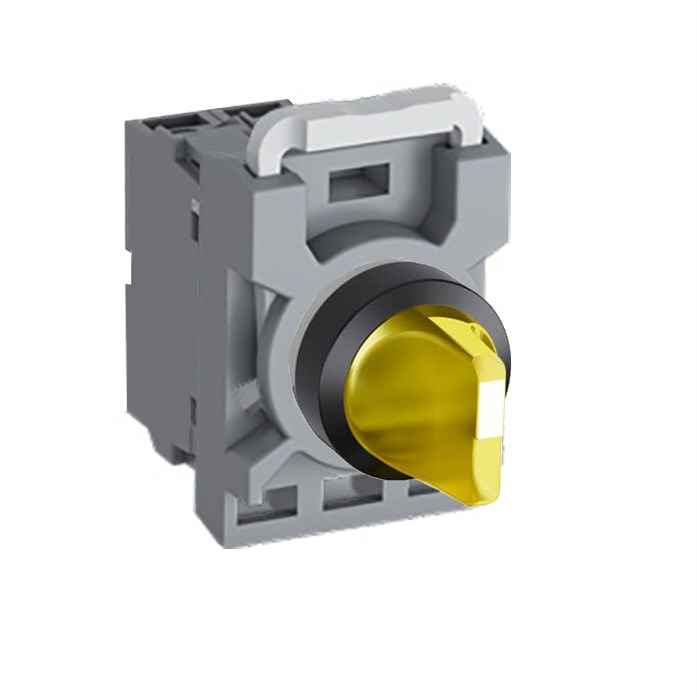

ABB MPS2ISAACY601 Selector Switch Kit Yellow 220VDC 2Position 1NC Illuminated Maintained Short Handle Plastic A C

Product Code: MPS2ISAACY601

  • Illuminated with bright yellow colour for visibility
  • Operates in temperatures from -25 to 70°C
  • Complies with IEC, EN, CSA, and UL standards
  • Short handle actuator; maintained function
  • Rated voltage of 220 VDC with 10 A thermal current
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
No. of Positions 2
Spring Return From Not Applicable
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Maintained Positions A,C
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Short Handle
Colour Yellow
Contact Configuration 1NC
Cutout Size 22 mm
Function Maintained
Illumination Illuminated
Maintained Position A, C
Material Plastic
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
