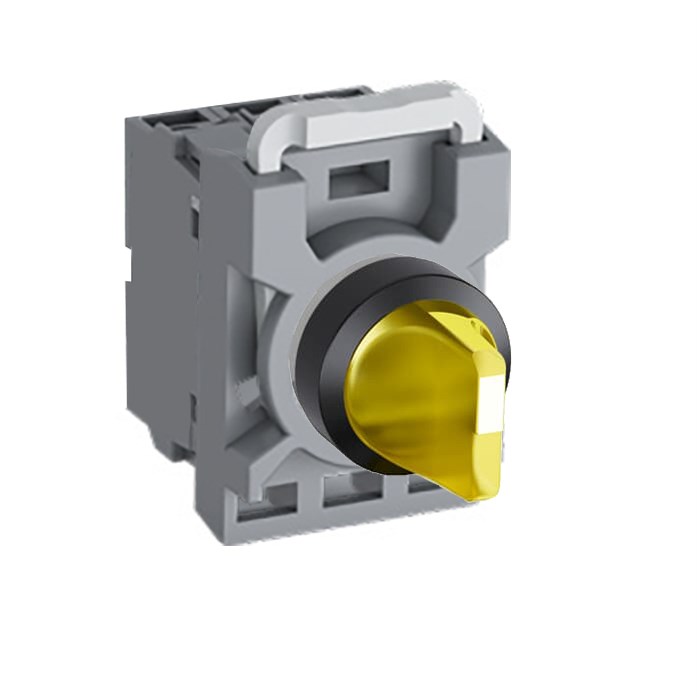

The MPS2 series selector switch is a reliable choice for industrial and commercial applications, designed to meet the demands of various technical environments. This switch operates at a rated voltage of 110-130 VAC and features an illuminated yellow actuator, making it easy to identify in diverse settings.
Manufactured with durable plastic materials, the selector switch can withstand operational temperatures ranging from -25 to 70 degrees Celsius. This robust temperature range ensures optimal performance in both cold storage facilities and warmer industrial spaces.
Engineered to comply with numerous standards and approvals such as CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508 certifications ensure that this product meets stringent international safety and performance requirements.
The MPS2 selector switch boasts a rated insulation voltage of up to 690 V and can withstand impulse voltages up to 6 kV. With a contact configuration of two normally open (2NO) contacts and a rated thermal current capacity of up to 10 A, this device is well-suited for handling moderate electrical loads efficiently.
Its short handle actuator type provides ease of use while maintaining functionality over extended periods due to its maintained operation feature. The cutout size measures at an industry-standard diameter of 22 mm for straightforward installation into control panels or operator stations.
The maintained position options B and C offer flexibility in configuring the switch according to specific operational needs or preferences within your setup. Whether you're integrating it into new systems or retrofitting existing installations this selector switch delivers consistent performance backed by reputable standards compliance ensuring peace-of-mind reliability across various applications within Australia’s demanding technical landscapes.
