Product Code: MPS2ISOCBC611

Illuminated selector switch for clear visibility
Operates in -25 to 70°C temperature range
Short handle actuator with momentary function
Rated voltage of 220 VDC and insulation of 690 V
Complies with multiple international standards

Specifications

Contacts	1NO + 1NC
No. of Positions	2
Rated Voltage DC (V)	220
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	220 VDC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Clear
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	White
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

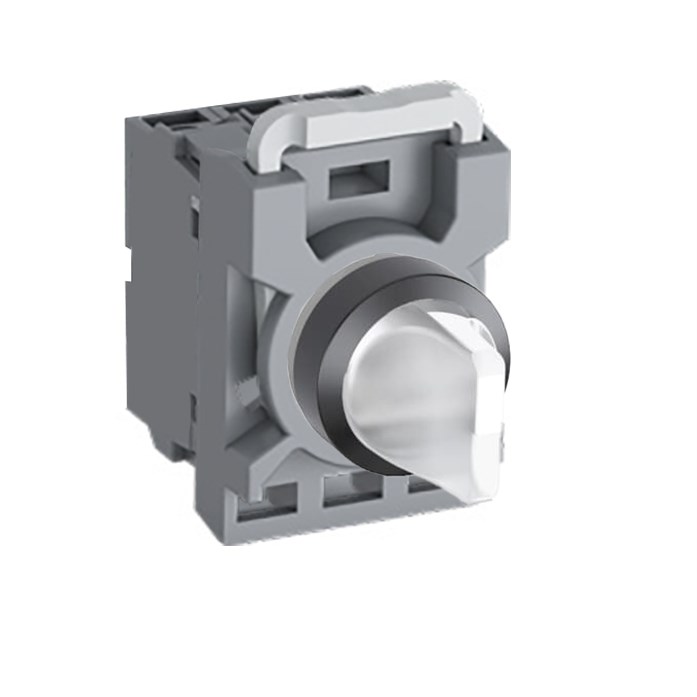

The Illuminated Selector Switch Kit is a clear, 2-position switch that returns from position C to B. It features a short handle and an integrated white LED. The switch operates at 220 V DC and has 1 normally open (NO) contact and 1 normally closed (NC) contact. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
