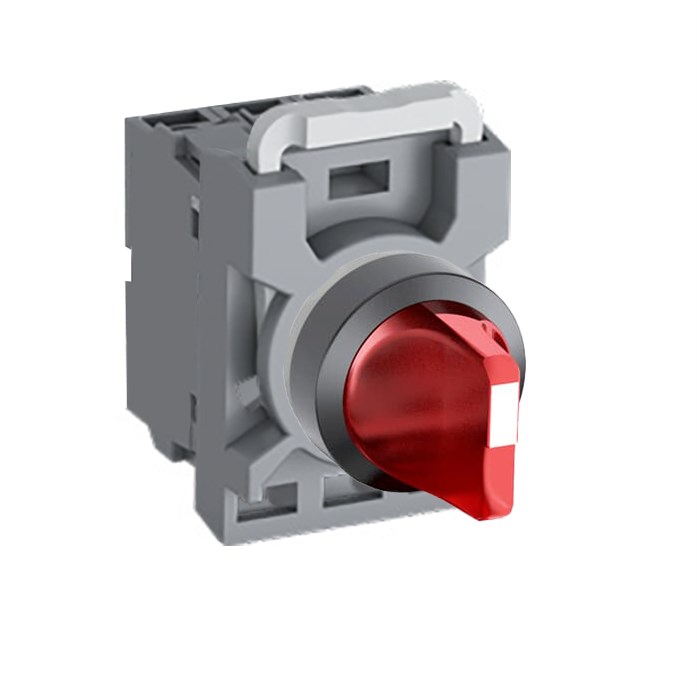

ABB MPS2ISOCBR020 Selector Switch Kit Red 12VDC 2Position 2NO Illuminated Momentary Short Handle Plastic

Product Code: MPS2ISOCBR020

  • 12 VDC illuminated selector switch
  • Red, plastic short handle design
  • Operates in -25 to 70°C range
  • Meets CSA, DIN, EN, IEC, UL standards
  • 22 mm cutout with momentary function
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
No. of Positions 2
Rated Voltage DC (V) 12
Maintained Positions Not Applicable
Spring Return From C->B
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Short Handle
Colour Red
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 (Front), IP20 (Terminals)
Function Momentary
Illumination Illuminated
Lamp Type Built-in LED
LED Colour Red
Maintained Position C, B
Material Plastic
Mode of Operation Momentary C to B
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VDC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Selector Switch Kit is a red, 2-position switch with a return from position C to B. It features a short handle and an integrated red LED. The switch operates on 12V DC power and has 2 normally open contacts. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
