Product Code: MPS2ISOCBR120

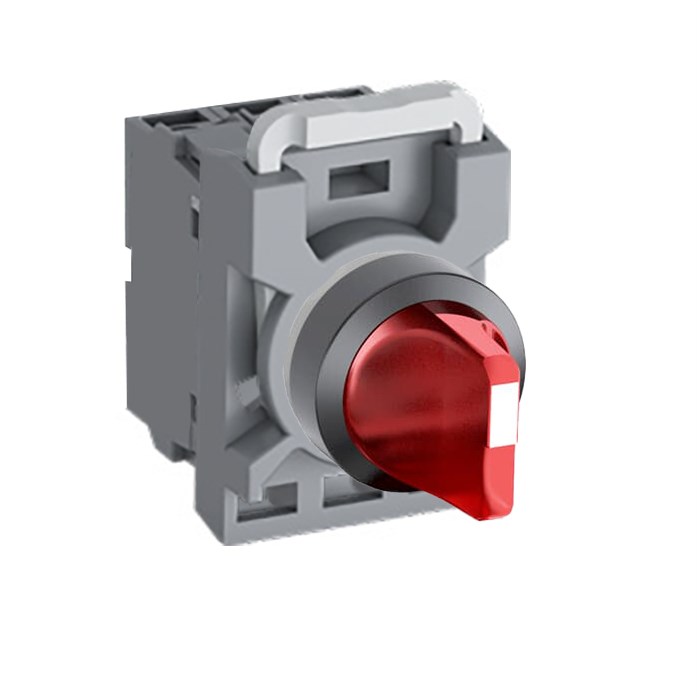

Illuminated red selector switch for clear visibility
Operates at 24 VAC/VDC with plastic build
Short handle actuator with momentary function
Supports 2NO contact configuration
Compatible in -25 to 70°C environments

Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage AC/DC (V)	24
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	24 VAC/DC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Red
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Red
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	24 VAC/VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated selector switch kit features a red 2-position return from C to B. It has a short handle and an integrated red LED for momentary use. The switch operates on 24V AC/DC and has 2 normally open contacts (2NO). It is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
