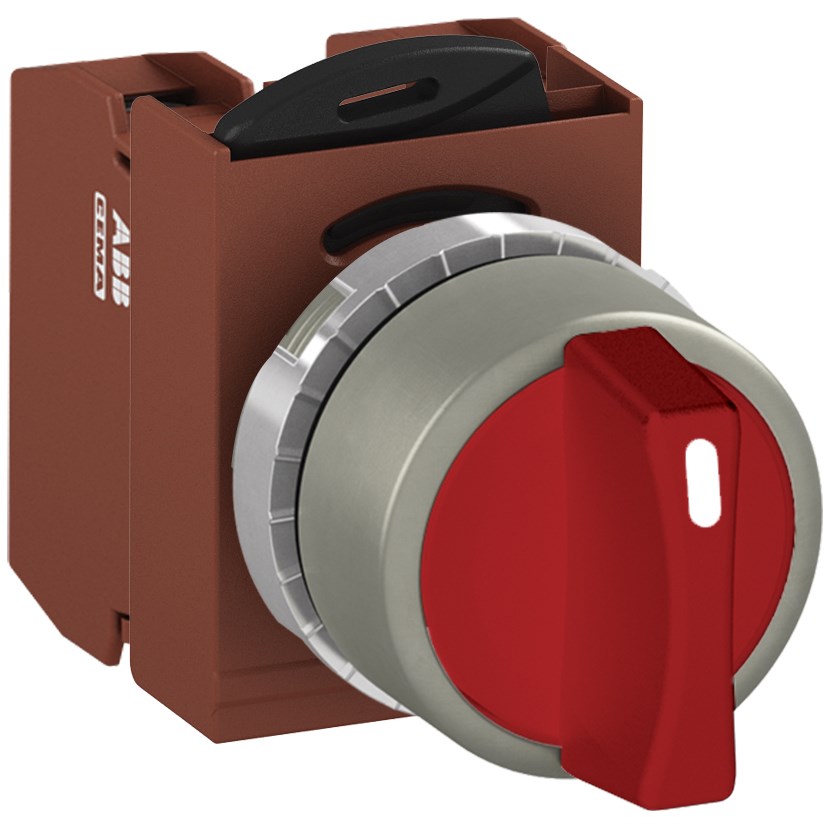

ABB MMS2NSAACRS11 Selector Switch Kit Red 2Position 1NO+1NC Non-Illuminated Screw Maintained Short Handle Metal

Product Code: MMS2NSAACRS11

  • Durable metal construction for robust use
  • Operates in extreme temps: -30 to 70°C
  • High protection: IP66 rated
  • Maintained function with short handle actuator
  • Compliant with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage Not Applicable
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS2
Actuator Type Short Handle
Colour Red
Connection Type Screw
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Non-Illuminated
Light Blocks Type LED Block
Maintained Position A, C
Material Metal
Number of Positions 2
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
