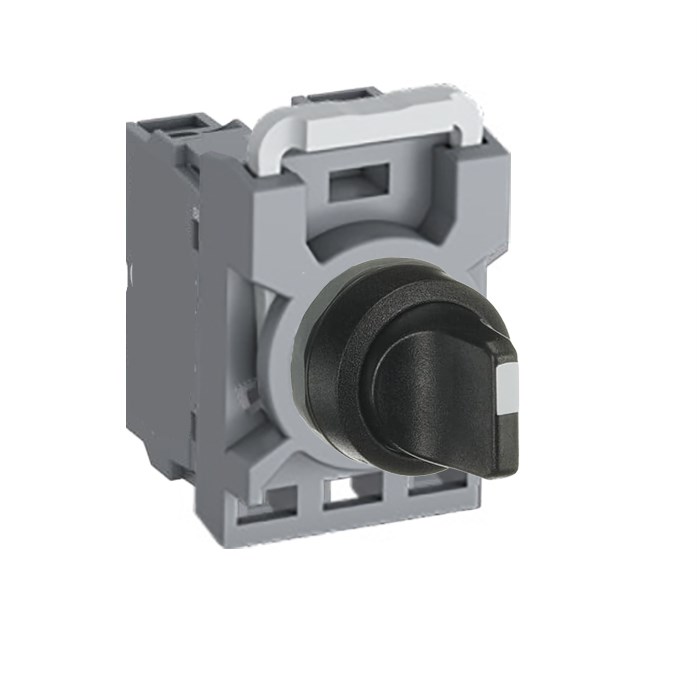

The MPS2 Series Selector Switch is a robust and reliable component designed for industrial and commercial applications. This non-illuminated selector switch, with its sleek black appearance, is crafted from durable plastic, ensuring longevity and resilience in demanding environments.
Operating efficiently within a temperature range of -25 to 70 degrees Celsius, this switch is well-suited for various climatic conditions. It adheres to multiple standards and approvals including CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508. These certifications underscore its compliance with international safety and performance benchmarks.
The MPS2 Selector Switch features a rated insulation voltage of up to 690 V and an impressive rated impulse withstand voltage of 6 kV. These specifications highlight the switch's capability to handle high-voltage applications safely. The contact configuration includes one normally open (NO) and one normally closed (NC) contact setup which offers flexibility in control circuit design.
Designed with a short handle actuator type for ease of use, the switch functions in a maintained mode—ideal for applications where the position needs to remain constant until manually changed. The maintained positions B and C provide specific operational states that can be tailored to meet your system requirements.
With a cutout size of 22 mm, the installation process is straightforward; it fits seamlessly into standard panel designs without requiring extensive modifications. Furthermore, the rated thermal current capacity stands at an ample 10 A—suitable for handling moderate electrical loads effectively.
Overall, the MPS2 Series Selector Switch combines functionality with durability making it an excellent choice for professionals seeking reliable switching solutions in their electrical installations or automation systems.
