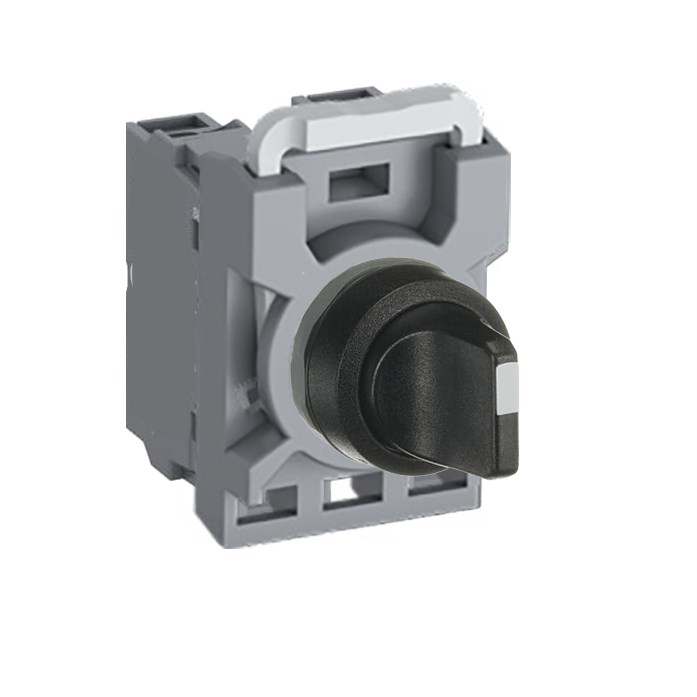

ABB MPS2NSOCBB11 Selector Switch Kit Black 2Position 1NO+1NC Non-Illuminated Momentary Short Handle Plastic

Product Code: MPS2NSOCBB11

  • Non-illuminated black plastic design
  • Operates in -25 to 70°C range
  • Complies with CSA, DIN, EN, IEC standards
  • Rated insulation voltage of 690 V
  • Short handle actuator, momentary function
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Positions 2
Maintained Positions Not Applicable
Spring Return From C->B
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Short Handle
Colour Black
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Function Momentary
Illumination Non-Illuminated
Maintained Position C, B
Material Plastic
Mode of Operation Momentary, spring return from C to B
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Non-Illuminated Selector switch Kit is designed for engineers in need of a black 2-position spring return switch. It features a short handle and offers momentary operation. The switch has 1 normally open (NO) and 1 normally closed (NC) contact configuration. This kit is part of a modular plastic range, ensuring durability and flexibility in various applications.
