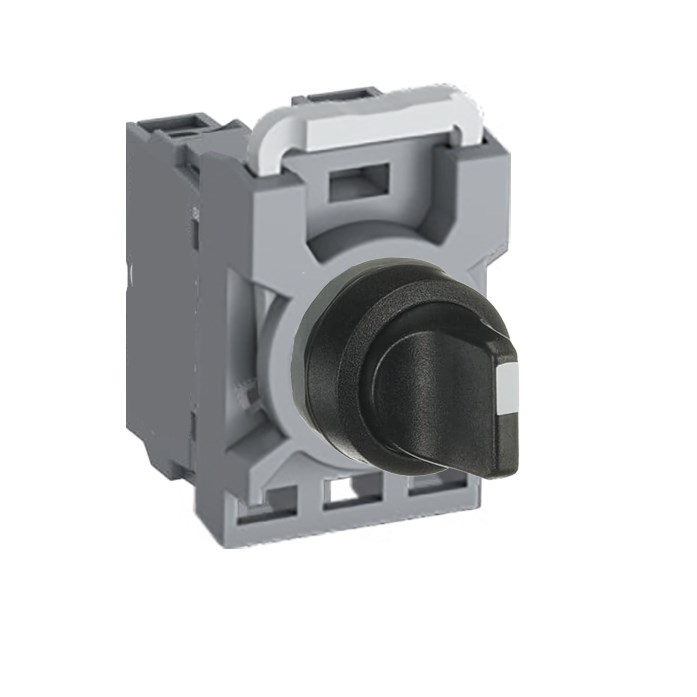

The MPS2 series offers a robust and reliable solution for industrial and commercial applications with its non-illuminated, black plastic design. Engineered to operate efficiently within a wide temperature range from -25 to 70 degrees Celsius, this product is well-suited for diverse environments.
This model adheres to rigorous international standards including CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 and UL 508. These certifications ensure high safety and performance levels in various operational settings.
With a rated insulation voltage of up to 690 volts and an impulse withstand voltage of 6 kV, the device is built to handle significant electrical demands while maintaining reliability. The contact configuration is designed as a double normally closed (2NC) setup which ensures safe operation by breaking the circuit when not engaged.
The actuator features a short handle type that provides momentary function control. This allows for quick engagement and release actions without maintaining continuous pressure on the switch—ideal for tasks requiring temporary activation.
Rated at a thermal current of up to 10 amperes, it can manage substantial current loads effectively without overheating or compromising performance. The cutout size of this unit is standardized at 22 mm making it compatible with existing panel designs and straightforward installation processes.
Furthermore maintained positions C and B offer flexibility in operations allowing users to choose configurations that best suit their specific application needs ensuring adaptability across different systems or machinery setups.
Overall the MPS2 series stands out as an efficient choice for those seeking dependable components that conform strictly to industry standards delivering consistent results over time even under challenging conditions.
