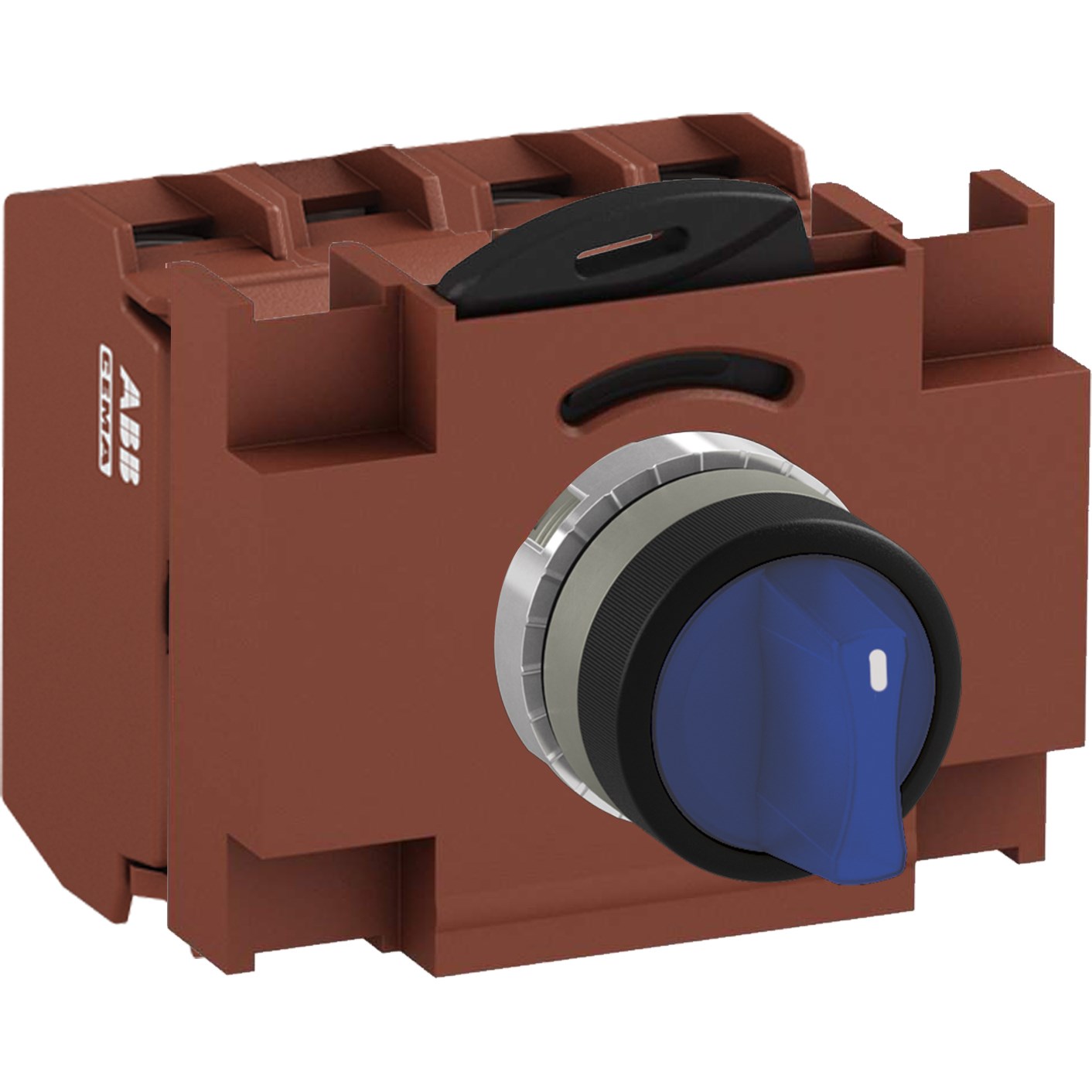

ABB MMS3ISAABCLSL303 Selector Switch Kit Blue 110VAC 3Position 3NC Illuminated Screw Maintained Short Handle

Product Code: MMS3ISAABCLSL303

  • Operates at 110 VAC with LED illumination
  • Robust metal construction, IP66 rated
  • Short handle actuator with maintained function
  • Screw connection for secure installation
  • Complies with CSA, UL, IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NC
No. of Positions 3
Maintained Positions A,B,C
Spring Return From Not Applicable
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Short Handle
Colour Blue
Connection Type Screw
Contact Configuration 3NC
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type LED Block
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
