Specifications

Contacts	3NO
No. of Positions	3
Maintained Positions	A,B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	230 VAC
Bezel Material	Metal

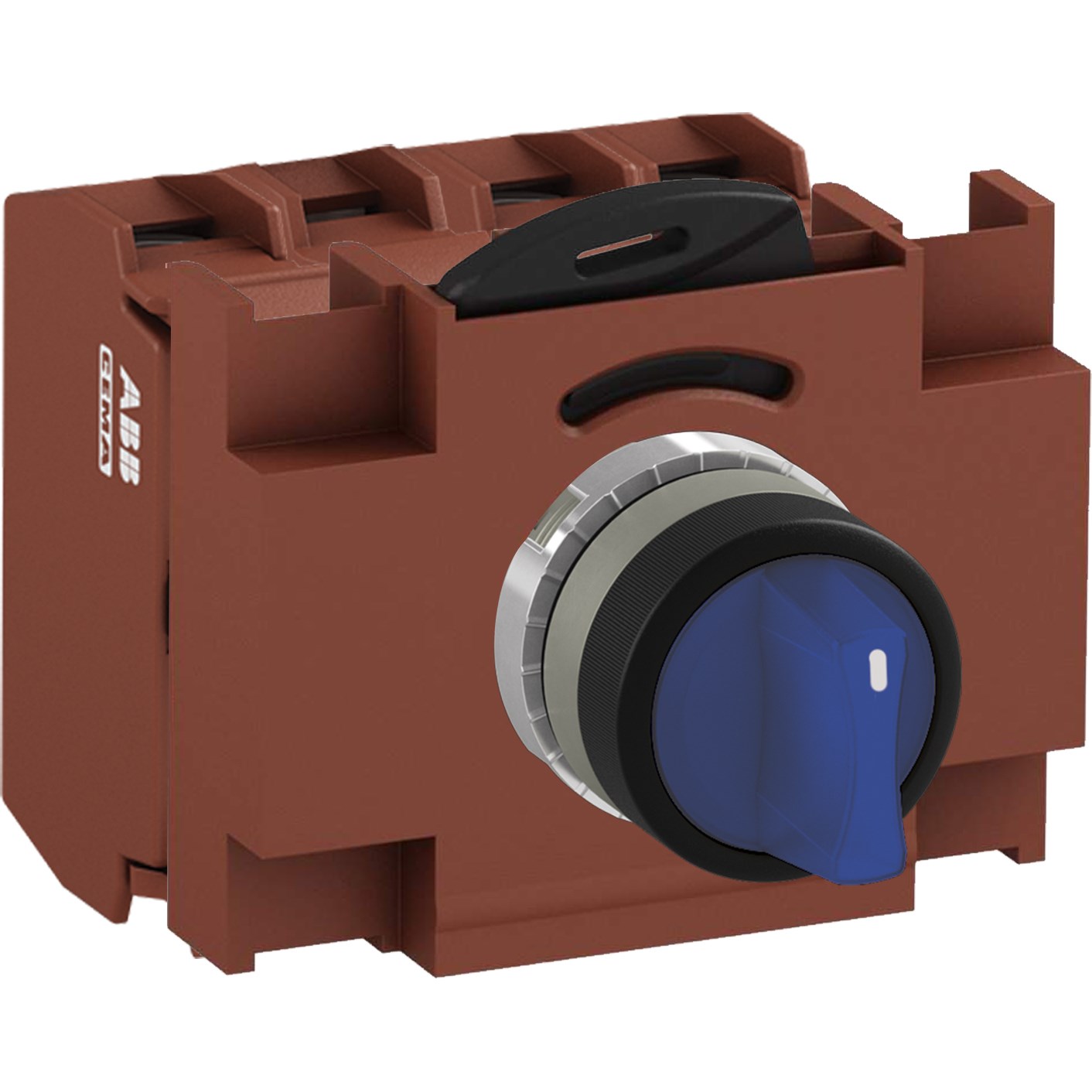

Product Type	Selector Switch Kit
Brand	ABB
Series	MMS
Actuator Type	Short Handle
Colour	Blue
Connection Type	Screw
Contact Configuration	3NO
Cutout Size	22 mm
Degree of Protection	IP66
Function	Maintained
Illumination	Illuminated
Light Blocks Type	LED Block
Maintained Position	A, B, C
Material	Metal
Number of Positions	3
Operational Temperature	-30 to 70 deg C
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC
Standards and Approvals	CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
