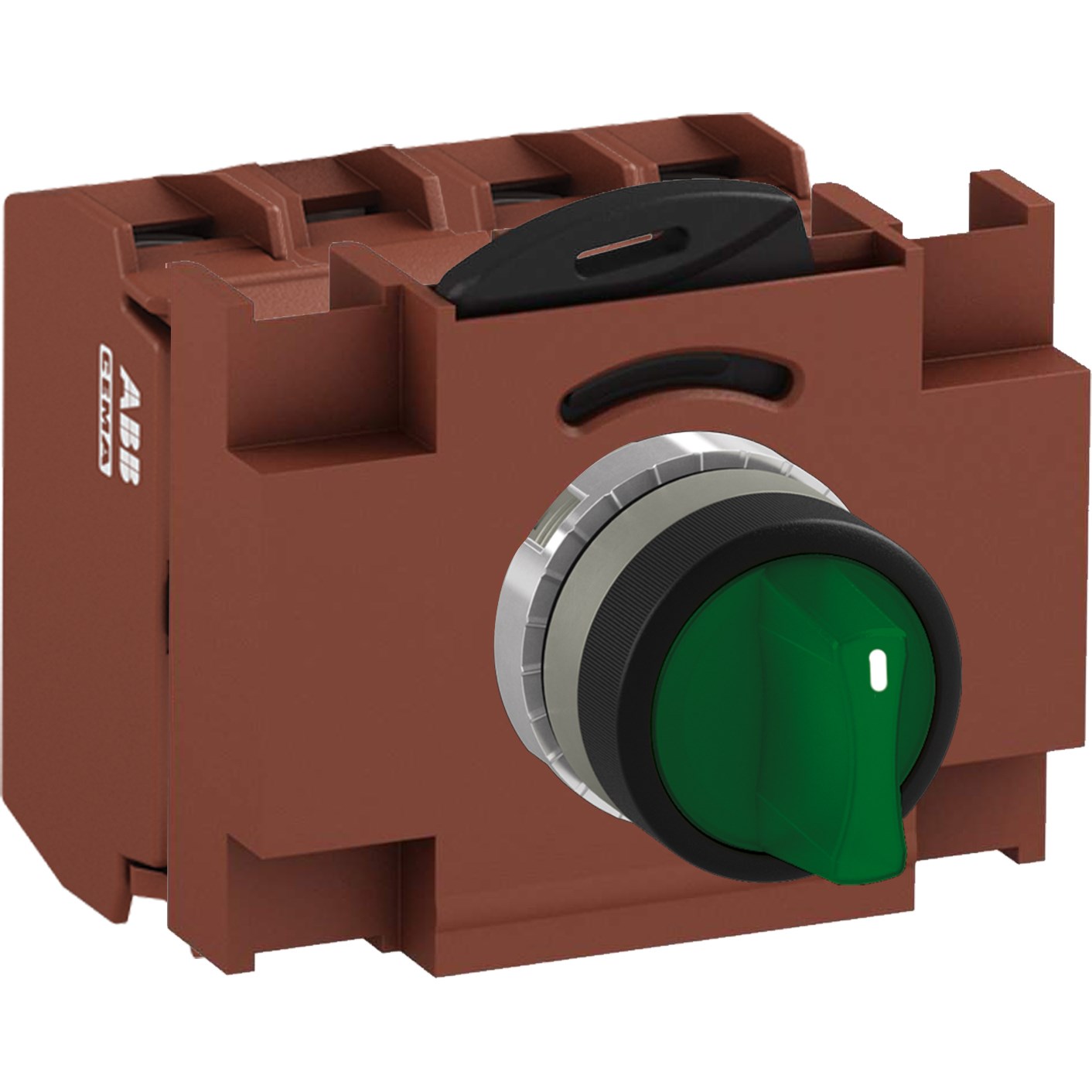

ABB MMS3ISAABCGSP303 Selector Switch Kit Green 110VAC 3Position 3NC Illuminated Screw Maintained Short Handle

Product Code: MMS3ISAABCGSP303

  • 110 VAC illuminated green metal switch
  • Operates in -30 to 70°C temperature range
  • IP66 rated for high protection
  • Complies with CSA, IEC, and UL standards
  • Screw connection with 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NC
No. of Positions 3
Maintained Positions A,B,C
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Spring Return From Not Applicable
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Short Handle
Colour Green
Connection Type Screw
Contact Configuration 3NC
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
