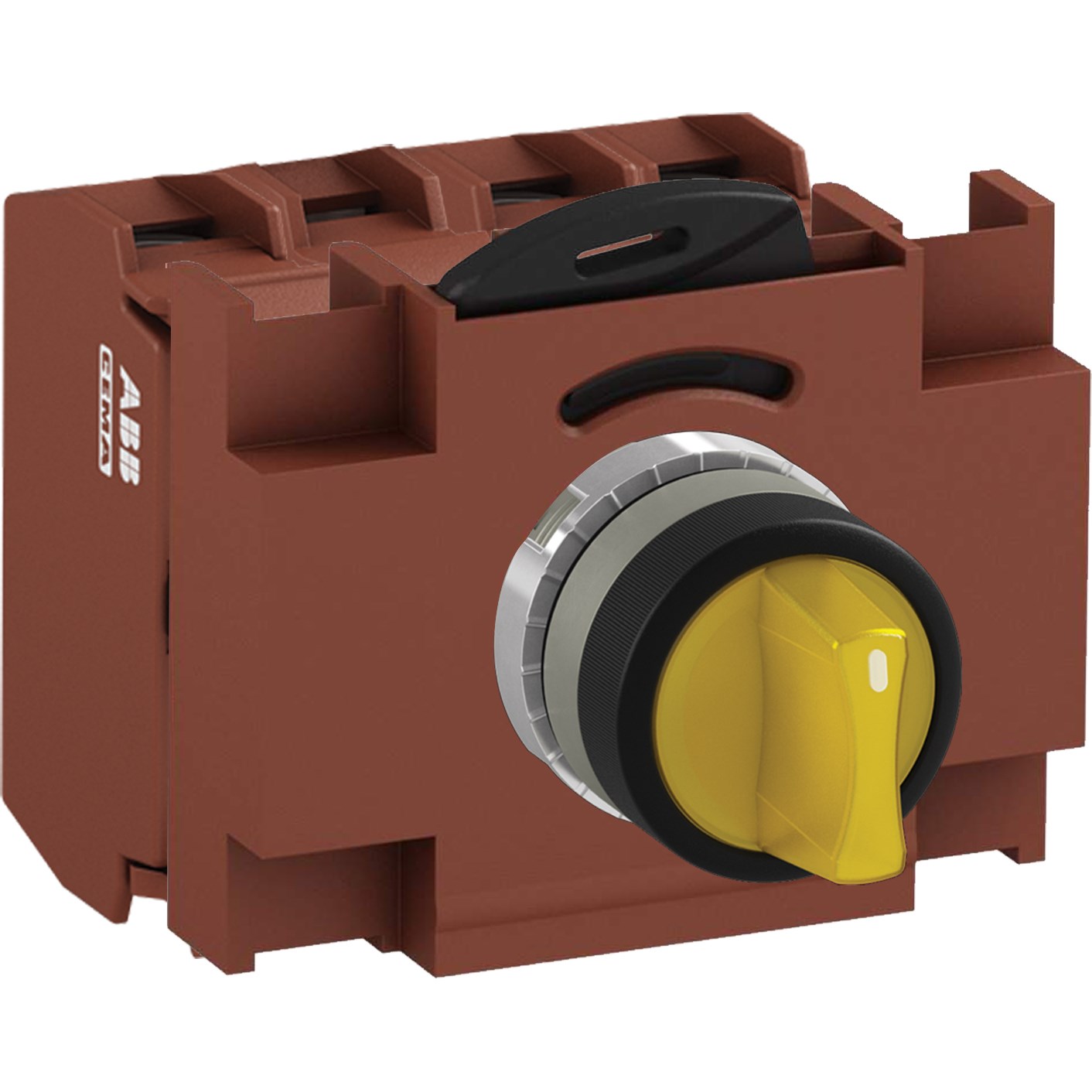

ABB MMS3ISAABCYFP030 Selector Switch Kit Yellow 6VAC/DC 3Position 3NO Illuminated Faston Maintained Short Handle

Product Code: MMS3ISAABCYFP030

  • Illuminated switch with yellow metal design
  • IP66 protection for harsh environments
  • Operates in temperatures from -30 to 70°C
  • Rated insulation voltage up to 690 V
  • Maintained function with short handle actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3NO
No. of Positions 3
Maintained Positions A,B,C
Spring Return From Not Applicable
LED Block Rated Voltage 6 VAC/DC
Bezel Material Metal
Product Type Selector Switch Kit
Brand ABB
Series MMS
Actuator Type Short Handle
Colour Yellow
Connection Type Faston
Contact Configuration 3NO
Cutout Size 22 mm
Degree of Protection IP66
Function Maintained
Illumination Illuminated
Light Blocks Type Power Supply
Maintained Position A, B, C
Material Metal
Number of Positions 3
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/VDC
Standards and Approvals CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
