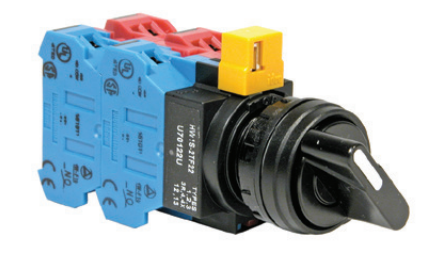

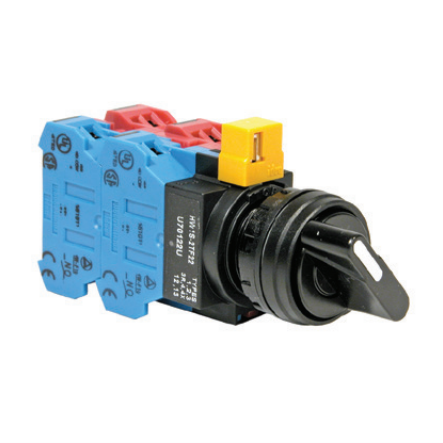

IDEC HW1S-2TF10 Selector Switch 2Position 1NO Non-Illuminated Maintained Knob Knob Plastic Screw Terminal

Product Code: HW1S-2TF10

  • Selector switch with a 10 A current rating
  • Suitable for 22 mm mounting holes
  • IP20/IP65 protection for durability
  • Screw terminals for secure connections
  • CE, CSA, UL approved for compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Positions 2
Suitable For HW Series
No. of Normally-open Contacts 1
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Knob
Bezel Material Plastic
Contact Configuration 1NO
Degree of Protection IP20, IP65
Function Maintained
Illumination Non-Illuminated
Insulation Resistance 50 MOhm
Material Bezel: Plastic
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1S-2TF10 is a non-illuminated selector switch with a knob handle designed for robust performance. Its 2-position maintained operation ensures consistent settings, while the durable plastic bezel construction enhances longevity. The switch includes 1 normally open (NO) contact for straightforward circuit integration and features an ergonomic design for operator comfort and ease of use. Ideal for various industrial applications, this selector switch combines functionality with simplicity.
