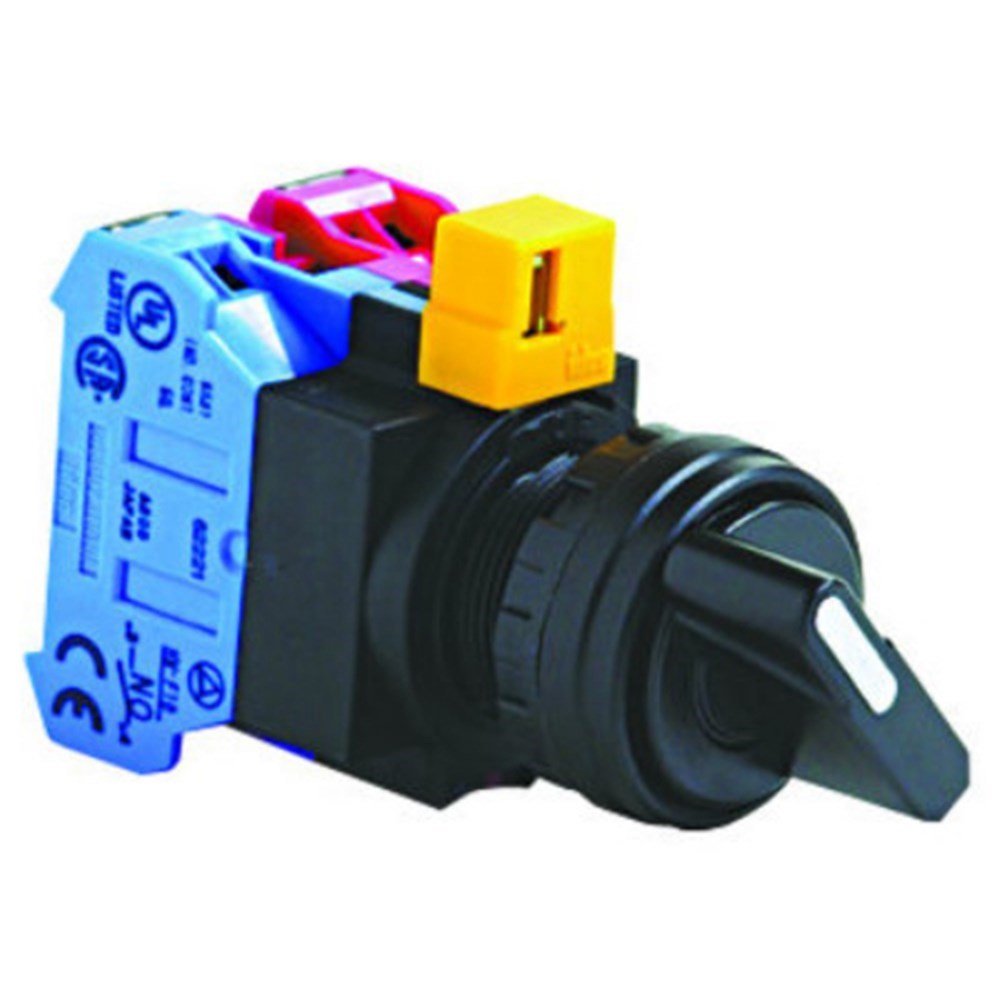

IDEC HW1S-2TF11-K Selector Switch 2Position 1NO+1NC Maintained Knob Knob Plastic Screw Terminal

Product Code: HW1S-2TF11-K

  • Selector switch with knob actuator
  • Rated current of 10 A, 50/60 Hz frequency
  • IP20/IP65 protection for durability
  • Supports CE, CSA, UL standards
  • Operates in -25 to 60°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
No. of Positions 2
Operational Temperature Range (°C) -25 to +60
Rated Continuous Current (A) Contact Rating - 10
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Impulse Withstand Voltage (kV) 4
Tightening Torque (Nm) Locking Ring - 2.0
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Knob
Bezel Material Plastic
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Maintained
Insulation Resistance 50 MOhm
Mode of Operation Maintained
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1S-2TF11-K Selector Switch is a robust control device featuring a 2-position knob with maintained operation. It includes 1 Normally Closed (NC) and 1 Normally Open (NO) contact, suitable for diverse electrical circuit requirements. Designed for 22mm mounting, this switch ensures easy installation and operation. With an IP20 rating, it provides protection against touch by fingers, enhancing safety in its use.
