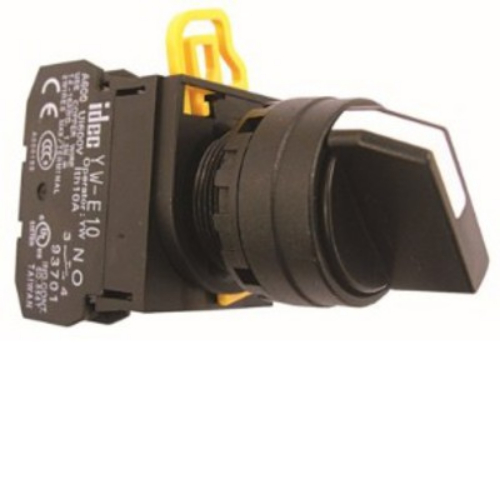

IDEC YW1S-33E20 Selector Switch 3Position 2NO Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1S-33E20

  • Selector switch with 10 A rated current
  • Operates at 50/60 Hz frequency
  • Two-way spring return operation
  • IP20/IP65 protection for durability
  • Fits 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
No. of Positions 3
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Bezel Type Plastic
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Two-Way Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-33E20 Selector Switch is engineered for efficient control with its 3-position interface and dual normally open (2NO) contacts. It incorporates a spring return mechanism for quick reversion to the default position and supports two-way operation. This switch ensures safety with an IP20 rating, safeguarding against solid objects and providing finger-safe terminals. Ideal for various industrial applications, it offers reliable performance and ease of use.
